Thomas & Betts 168DRG INSUL CAP 15KV LB W/TP
- MPN: 168DRG
- UPC: 783786639960
- PPN: T-B-168DRG
- UNSPSC: 26121630
CAD
$681.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

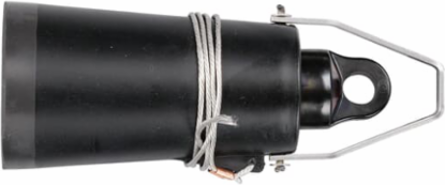

15kV 200 Amp, Loadbreak Insulated Cap with Ground Lead and Test Point, Equipped with insulated cuff. Has Brass Probe. Ground Lead #14 AWG. 3.00 inch Diameter, 7.88 inch Length.
Specifications
Additional Information
| Application | Fully shielded, fully submersible, hot stick operable, separable connectors designed for energized operation. They are suitable for use on 15kV class loadbreak systems. |
|---|---|
| Effective Date | 19980108 |
| Product Name | PRIMARY CABLE ACC. 200 SEP CON |
| Size | 3.00 inch Diameter |
| Standards | ANSI/IEEE 386 |
| Brand / Label | Elastimold |
|---|---|
| Material | EPDM Rubber |
| Product Type | Insulated Cap |
| Special Functions | 15kV, 200 Amp Loadbreak Rated. Molded EPDM Rubber. Includes all brass probe. Provision for hotstick operation. Ground lead wire #14 AWG attached. Insulated cuff for extra protection. Non-corrosive capacitive test point. |
| Temperature Range | -40 to +65 °C |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 1779 >> Cable accessories |
|---|
