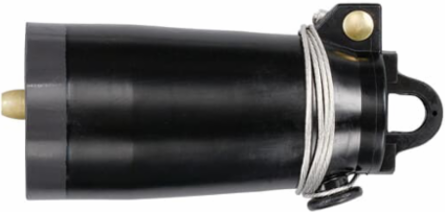

Thomas & Betts 273DRG-5 INSUL CAP W/GRND BIMETAL COMP LUG
- MPN: 273DRG-5
- UPC: 783786363339
- PPN: T-B-273DRG-5
- UNSPSC: 39121421
CAD
$210.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
200 Amp, 25kV, Insulated Cap with Ground, Equipped with Insulated Cuff. Bi-Metal Compression Lug. Ground Lead 62 inches and White.
Specifications
Additional Information
| Application | Fully shielded, fully submersible, hot stick operable, separable connectors designed for energized operation. |
|---|---|
| Color | Black |
| Effective Date | 19990517 |
| Material | Housing - EPDM Rubber |
| Product Type | Loadbreak Insulated Cap |
| Special Functions | 25kV, 200 Amp Loadbreak Rated. Molded EPDM Rubber. Includes all brass probe. Provision for hotstick operation. Ground lead wire #14 AWG attached. Insulated cuff for extra protection. |
| Temperature Range | -40 to +65 °C |
| Brand / Label | Elastimold |
|---|---|
| Current Rating | 200 A |
| Insulation Material | Yes, EPDM Rubber |
| Product Name | PRIMARY CABLE ACC. 200 SEP CON |
| Size | Diameter 2.90 inch (73.7mm) |
| Standards | ANSI/IEEE Standard 386 |
| Voltage Rating | 25 kV |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4586 >> Electrical connector assembly |
|---|
