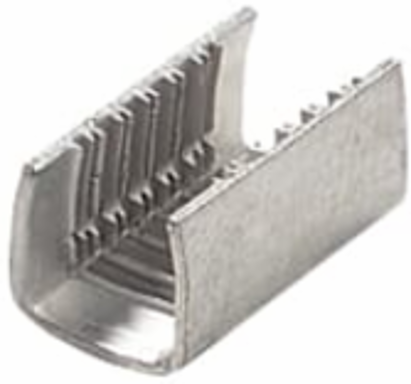

Dragon Tooth 22L004 INSUL PIERCE SPLICE CU 32-24 AWG

MPN: 22L004
UPC: 786210892481
PPN: T-B-22L004
UNSPSC: 39121449

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$0.46/ EA

Qty:

Loading add to cart quantity...

Description

Insulation Piercing Magnet Wire Splice, Length .15 Inches, Width .11 Inches, Height .09 Inches, Wire Range #32 AWG - #24 AWG 128 Circular Mil Area - 2,028 Circular Mil Area, Copper Alloy, Tin Plated

Specifications

Additional Information

Application: For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.

Effective Date: 19770803

Product Name: ELECTRICAL TERMINAL <1000V

Special Functions: Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.

Sub Brand / Label: Dragon Tooth

Brand / LabelSta-Kon

MaterialCopper

Product TypeSplice

StandardsUL E9809

Surface FinishingTin Plated

Ordering

Country of Origin: United States (US)

Selling Unit of Measureeach

Classifications

WEEE Category: Product Not in WEEE Scope

IDEA Granular Category Code (IGCC)4669 >> Wire or cable compression splice
