Dragon Tooth

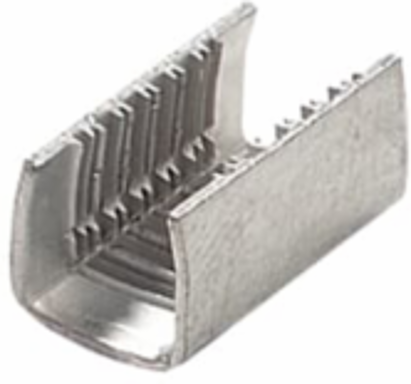

Dragon Tooth 22L009 INSUL PRC WIRE SPLICE CU 16-5 AWG

INSUL PRC WIRE SPLICE CU 16-5 AWG
  • MPN: 22L009
  • UPC: 786210816135
  • PPN: T-B-22L009
  • UNSPSC: 39121449

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1.24/ EA

Description

Insulation Piercing Magnet Wire Splice, Length .32 Inches, Width .55 Inches, Height .46 Inches, Wire Range #16 AWG - #5 AWG 36,120 Circular Mil Area - 86,000 Circular Mil Area, Copper Alloy, Tin Plated

Specifications

Ordering

Country of Origin
United States (US)
Selling Unit of Measureeach

Additional Information

Application
For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.
Effective Date
19800926
Product Name
ELECTRICAL SPLICE
Special Functions
Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.
Sub Brand / Label
Dragon Tooth
Brand / LabelSta-Kon
MaterialCopper
Product TypeSplice
StandardsUL E9809
Surface FinishingTin Plated

Classifications

WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4669 >> Wire or cable compression splice
