Dragon Tooth

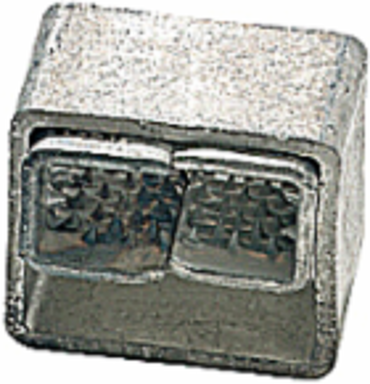

Dragon Tooth 204210MT Modular Connectors

Modular Connectors
  • MPN: 204210MT
  • UPC: 786210839257
  • PPN: T-B-204210MT

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$11.99/ EA

Description

Insulation Piercing Magnet Wire Modular Connector, Length Between Teeth .25 Inches, Length .92 Inches, Width .94 Inches, Wire Range #10 AWG - #3 AWG 90,000 Circular Mil Area - 215,000 Circular Mil Area, Copper Alloy, Tin Plated

Features

  • Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.
  • For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.

Specifications

European Specifications (ETIM)

ETIM
EC001059 Crimp splices for copper conductor
Model
Standard version
Suitable for solid cores
N
Suitable for fine strand conductors
N
Suitable for round conductors
Y
Material
Copper
Insulation
None
Type of connection
End connector
AWG-range10-3
Sleeve formShort
Useful for stranded conductorsN
Suitable for insulated varnishY
Suitable for flat conductorsY
Surface protectionTinned
Voltage rowUp to 600 V
Oil stop/centre barN

North American Specifications (UNSPSC)

UNSPSC
39121432 Electrical terminals
Brand Name
Dragon Tooth
Special Features
Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.
Standard
UL E9809
IGCC4603 Electrical terminals
TypeModular Connectors
ApplicationFor aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.
MaterialCopper

Packaging

Inner Dimensions (inches)
xx
Outer Dimensions (inches)
10x7.5x4.25
Outer Quantity100
Weight Uom7.81 lbs. per 100
