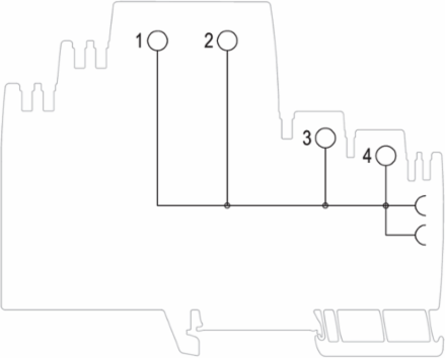

Weidmuller 2122940000 maxGUARD Electronics 4 Terminal PUSH IN Connector, 27.5g, IP20, -25 C to 55 C
- MPN: 2122940000
- PPN: WDM-2122940000
CAD
$11.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Potential distributor
Documentation & Downloads
Specifications
General Data
- Conformal coating
- No
- Operating temperature
- -25 °C...55 °C
- Total current load per potential
- 24 A
Current load per contact point12 A
Protection degreeIP20
Probability Of Failure
- MTTF
- 50,000 Years
Approvals
- Approvals
- CE, CULUS, EAC, TUEV
- UL File Number Search
- E258476
ROHSConform
Dimensions And Weights
- Width
- 6.1 mm
- Height
- 125 mm
- Depth
- 96.5 mm
- Net weight
- 27.5 g
Width (inches)0.24 inch
Height (inches)4.921 inch
Depth (inches)3.799 inch
Classifications
- ETIM 6.0
- EC000897
- eClass 9.0
- 27-14-11-20
- eClass 10.0
- 27-14-11-20
ETIM 7.0EC000897
eClass 9.127-14-11-20
Output
- Connection system
- PUSH IN
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Connection Data (Output)
- Conductor cross-section, AWG/kcmil , max.
- 12
- Conductor cross-section, flexible , max.
- 2.5 mm²
- Conductor cross-section, rigid , max.
- 2.5 mm²
- Connection system
- PUSH IN
- Screwdriver blade
- 0.6 x 3.5
Conductor cross-section, AWG/kcmil , min.26
Conductor cross-section, flexible , min.0.14 mm²
Conductor cross-section, rigid , min.0.14 mm²
Number of terminals4 (4x GND), 2 x 1.5 mm², 2 x 2.5 mm²
Temperatures
- Operating temperature, max.
- 55 °C
- Storage temperature, max.
- 85 °C
- Operating temperature
- -25 °C...55 °C
Operating temperature, min.-25 °C
Storage temperature, min.-40 °C
Storage temperature-40 °C...85 °C
Ratings Iecex/Atex/Cul
- Certificate no. (cULus)
- E258476
