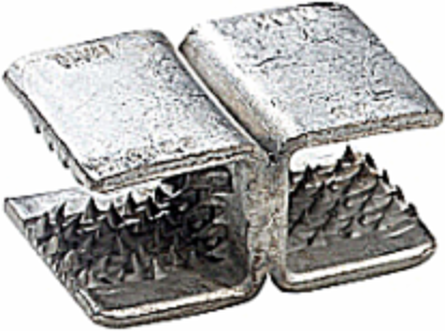

Dragon Tooth 204210SH Splices

MPN: 204210SH
UPC: 786210870038
PPN: T-B-204210SH

$4.45

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Insulation Piercing Magnet Wire Double Splice, Length .69 Inches, Width .53 Inches, Height 1.05 Inches, Wire Range #12 AWG - #2 AWG 20,760 Circular Mil Area - 104,960 Circular Mil Area, Copper Alloy, Tin Plated

Features

Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.
For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.

Specifications

North American Specifications (UNSPSC)

UNSPSC	39121449 Wire or cable compression splice
Brand Name	Dragon Tooth
Special Features	Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.
Standard	UL E9809
Finish	Tin Plated

IGCC	4669 Wire or cable compression splice
Type	Splices
Application	For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.
Material	Copper

European Specifications (ETIM)

ETIM	EC001059 Crimp splices for copper conductor
Model	Standard version
Suitable for solid cores	N
Suitable for fine strand conductors	N
Suitable for round conductors	Y
Material	Copper
Insulation	None
Type of connection	End connector

AWG-range	12-2
Sleeve form	Short
Useful for stranded conductors	N
Suitable for insulated varnish	Y
Suitable for flat conductors	Y
Surface protection	Tinned
Voltage row	Up to 600 V
Oil stop/centre bar	N
