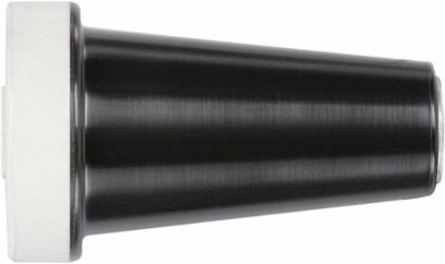

Thomas & Betts 750LB INSULATING PLUG, 600A, 35KV
- MPN: 750LB
- UPC: 783786488612
- PPN: T-B-750LB
- UNSPSC: 26121630
CAD
$536.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
35kV 600 Series Deadbreak Insulating Plug / Stand-Off Plug. Overall Length 5 inch, Widest Diameter 3 inch. Epoxy Housing.
Specifications
Additional Information
- Application
- Designed to provide a threaded mountable plug for use in cam-op cable joint kits. The 750LB is threaded onto the hardware aligning bracket and the retaining sleeves are threaded into bushing.
- Effective Date
- 20060322
- Product Name
- ELECTRICAL INSULATOR
- Size
- 3.00 inch (76.2 mm) Diameter, 5.00 inch (127.0 mm) Length.
- Standards
- ANSI/IEEE Standard 386
Brand / LabelElastimold
MaterialEPDM Rubber
Product TypeInsulating Plug
Special FunctionsFully rated 35kV, 600 Amp Deadbreak Insulated Plug. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps, surge arrestors, and circuit protection.
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)1779 >> Cable accessories
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
