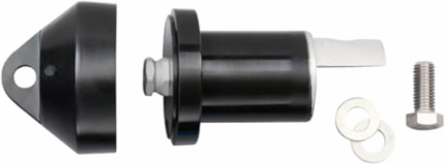

Thomas & Betts K650Y-BIP INSULATING PLUG
- MPN: K650Y-BIP
- UPC: 783786620951
- PPN: T-B-K650Y-BIP
- UNSPSC: 26121630
CAD
$1346.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15-25kV 600 Series Deadbreak Insulating Plug with Test Point & Cap
Specifications
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Additional Information
| Application | The Elastimold K650YBIP insulated plug is designed to insulate and shield 15/25kV, 600 Amp bus bar end interfaces. Units come standard with a cap for protection and include a capacitive test point interface. |
|---|---|
| Effective Date | 19980108 |
| Product Name | electrical plug>1000v |
| Size | 3.77 inch (95.7 mm) Diameter. |
| Standards | ANSI/IEEE Standard 386 |
| Brand / Label | Elastimold |
|---|---|
| Material | EPDM Rubber |
| Product Type | Insulating Plug |
| Special Functions | Fully rated 15/25kV, 600 Amp Deadbreak Insulating Plug. Fully shielded epoxy housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps, surge arrestors, and circuit protection. Non-corrosive capacitive test point. |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 1779 >> Cable accessories |
|---|
