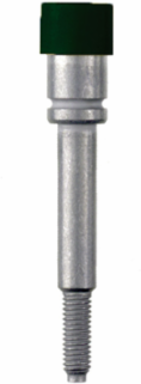

Weidmuller 0388500000 STB 35 IH/SW
- MPN: 0388500000
- PPN: WDM-0388500000
CAD
$4.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SAK Series, Socket
Documentation & Downloads
Specifications
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Width
- 7.2 mm
- Depth
- 37.5 mm
- Net weight
- 2.36 g
Width (inches)0.283 inch
Depth (inches)1.476 inch
Dimensions
- Plug-in depth
- 8 mm
Additional Technical Data
- Explosion-tested version
- No
- Type of fixing
- when screwed in
Installation adviceDirect mounting
Type of mountingwhen screwed in
Material Data
- Material
- PA 66
- UL 94 flammability rating
- V-2
Colourblack
Classifications
- ETIM 6.0
- EC002848
- eClass 9.0
- 27-14-11-92
- eClass 10.0
- 27-14-11-92
ETIM 7.0EC002848
eClass 9.127-14-11-92
UNSPSC30-21-18-11
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
System Specifications
- Version
- For the mounting rails
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 100 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
