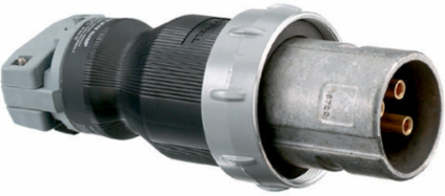

Hubbell Wiring Device-Kellems HBL460PS1W Watertight Male Plug, 60A 600V AC, 3-Pole 4-Wire Grounding, Gray
- MPN: HBL460PS1W
- UPC: 783585010540
- PPN: HBL-HBL460PS1W
- UNSPSC: 39121402
CAD
$753.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Male, Plug, 60A 600V AC, 3-Pole 4-Wire Grounding Style 1, Terminal Screws, Gray and Black, Watertight
Features
- Locking ring provides UL Type 4X watertight, dust-tight seal
- Catalog number and rating visible while in use
- All-Brass sleeve contacts provide reliable electrical contact
- Watertight
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 5.000 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17;Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94;Environmental - Operating Temperatures - Max. Continuous 75°C;Min. -40°C w/o impact -25° with impact;Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682;Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green)
- Application
- Metallic with Nylon Shroud
- Environmental Conditions
- Watertight
- Number of Poles
- 3-Pole
- Special Features
- Watertight
- Type
- Watertight Plug
- Wire Size
- #6 AWG to #4 AWG
- General Literature Asset 1 Display Text
- Wiring Device Solutions for Strategic Manufacturing Facilities
- General Literature Asset 3 Display Text
- PULP & PAPER SOLUTIONS
- Display Size
- Standard Sized
- Number Of Poles
- 3-Pole
- Style
- Standard Service, Style 1
- Description - Invoice
- PS, INS, PLUG, 3P4W, 60A 600V, S1
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Material - Mounting Hardware
- Cord Mounted
- Material
- Composite
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 26.650 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
- NAICS Code
- 335931A104
Current / Amperage Rating60 A
Industry Standard(s)CSA Certified to CSA Spec. C22.2 No. 159;UL Listed and CSA Certified Type 4X;UL Standard 1682,UL 50, and UL 1010
Amperage Rating60 A
Cord TypeAll Portable
NEMA RatingNon-NEMA
Number of Wires4-Wire
StandardCSA Certified to CSA Spec. C22.2 No. 159;UL Listed and CSA Certified Type 4X;UL Standard 1682,UL 50, and UL 1010
Voltage Rating600 VAC/250 VDC
Voltage Rating Description600V AC/250V DC
General Literature Asset 2 Display TextPulp & Paper Solutions
ConnectivityPressure Terminal Screws
Nema RatingNon-NEMA
Number Of Wires4-Wire
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA12A200
Current Rating60 A
SeriesUL 1686 Class 1 Insulgrip®
BOX SIZE11.100x23.300x10.800 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585010540
Case Weight25.750 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
