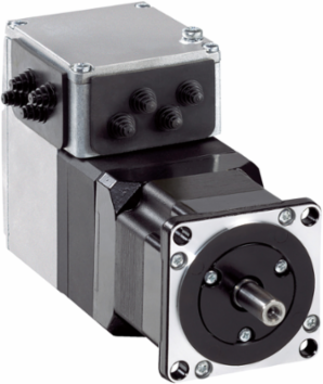

Schneider Electric ILA2E571PB2A0 Integrated Drive with Servo Motor, 24-48 V, EtherCAT, 1 Motor Stack, 1.4 kg
- MPN: ILA2E571PB2A0
- PPN: SCH-ILA2E571PB2A0
CAD
$3341.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This integrated drive from Schneider Electric combines advanced servo motor technology with a robust EtherCAT interface, offering a seamless solution for motion control applications. Designed to operate within a voltage range of 24-48 V, it features a single motor stack that ensures efficient and precise performance. Weighing only 1.4 kg, this unit is engineered for easy integration in various automation and control systems, making it a reliable choice for professionals seeking to enhance their operational efficiencies in motion control tasks.
Documentation & Downloads
Specifications
Additional
- Voltage Range
- 18-55.2 V
- Nominal Torque
- 0.44 N.m (3.89 lbf.in)
- Current Consumption
- 5000 mA max continuous, 7000 mA peak
- Maximum Radial Force
- 89 N
- Supply Voltage Limits
- 18-55.2 V
- Number of Motor Poles
- 6
- Voltage State 0 Guaranteed
- -3 to 4.5 V
- Discrete Input Current
- 10 mA at 24 V safety input, 2 mA at 24 V signal interface
- Feedback Type
- Multi turn encoder
- Speed Feedback Resolution
- 16384 points/turn x 4096 turns
- Service Life
- 20000 h (bearing)
- Gear Box Type
- Without
- Motor Type
- AC synchronous servo motor
- Type of Cooling
- Natural convection
- Ambient Air Temperature for Operation
- 0 to 40 °C without derating, 40 to 55 °C with 2%/°C derating
- Relative Humidity
- 15 to 85% without condensation
- Shock Resistance
- 150 m/s² (1000 shocks) IEC 60068-2-29
- Length
- 189.3 mm (7.45 in)
- Centring Collar Diameter
- 50 mm (1.97 in)
- Number of Mounting Holes
- 4
- Circle Diameter of Mounting Holes
- 66.6 mm (2.62 in)
- Shaft Length
- 20 mm (0.79 in)
- Mounting Support
- Flange
- Material
- Not specified
- Product Certifications
- UL, TÜV, cUL
- Marking
- CE
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
Nominal Speed3200 rpm (24 V), 5100 rpm (48 V)
Peak Stall Torque0.62 N.m (5.49 lbf.in)
Associated Fuse Rating16 A
Maximum Axial Force104 N
Transmission Rate100 Mbits
PhaseSingle phase
Voltage State 1 Guaranteed15 to 30 V
Maximum Switching Current100 mA per output, 200 mA total
Accuracy Error+/- 0.05°
Rotor Inertia0.095 kg.cm²
Number of Motor Stacks1
Holding BrakeWithout
Winding TypeMedium speed of rotation and medium torque
Operating Altitude<= 1000 m without derating
Storage Temperature-25 to 70 °C
Vibration Resistance20 m/s² (10-500 Hz, 10 cycles) IEC 60068-2-6
IP Degree of ProtectionIP54 total except shaft bushing, shaft bushing IP41, IEC 60034-5 compliant
Motor Flange Size57 mm (2.24 in)
Centring Collar Depth1.6 mm (0.06 in)
Mounting Holes Diameter5.2 mm (0.20 in)
Shaft Diameter9 mm (0.35 in)
Shaft EndUntapped
Net Weight1.4 kg (3.09 lb)
Country of OriginDE
StandardsIEC 50178, EN 61800-3, IEC 61800-3 Ed 2, IEC 60072-1, IEC 50347
RoHS CompliancePro-active compliance (Product out of EU RoHS legal scope)
PVC FreeYes
Warranty18 months
