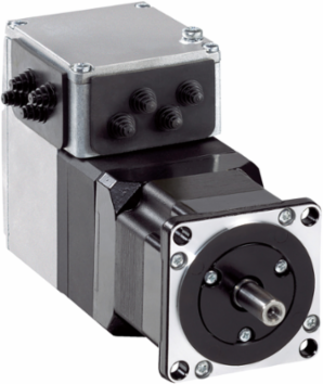

Schneider Electric ILA2T572PC1A0 Integrated Drive with Servo Motor, 24-48 V, Modbus TCP, 0.78 N.m Torque
- MPN: ILA2T572PC1A0
- PPN: SCH-ILA2T572PC1A0
CAD
$2901.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered for seamless automation, the Schneider Electric integrated drive combines a servo motor with cutting-edge technology to deliver exceptional performance in motion control applications. With a voltage range of 24-48 V and a torque output of 0.78 N.m, this drive is designed to meet the dynamic requirements of various industrial settings. Featuring Modbus TCP connectivity, it ensures efficient communication and integration within automated systems, facilitating smooth operations and enhancing productivity. This integrated solution not only streamlines installation but also optimizes space, making it an excellent choice for modern control panel builders and engineers looking to elevate their automation projects.
Documentation & Downloads
Specifications
Additional
- Voltage
- 24-48 V
- Continuous Stall Torque
- 0.78 N.m (6.90 lbf.in)
- Torque
- 0.78 N.m (6.90 lbf.in)
- Associated Fuse Rating
- 16 A
- Input/Output Type
- 4 signals (each be used as input or output)
- Accuracy Error
- +/- 0.05°
- Maximum Axial Force
- 104 N (force pressure and tensile)
- Storage Ambient Temperature
- -25 to 70 °C
- Relative Humidity
- 15 to 85% without condensation
- Shock Resistance
- 150 m/s², 1000 shocks IEC 60068-2-29

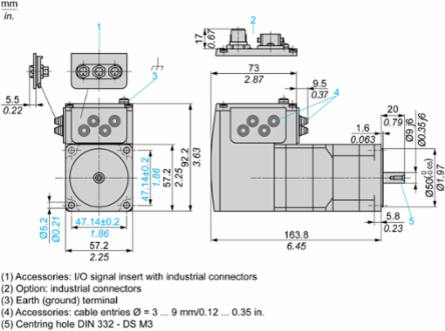

- Length
- 6.45 in (163.8 mm)
- Shaft Diameter
- 0.35 in (9 mm)
- Number of Motor Poles
- 6
- Number of Mounting Holes
- 4
- Circle Diameter of Mounting Holes
- 2.62 in (66.6 mm)
- Centring Collar Depth
- 0.06 in (1.6 mm)
- Motor Type
- AC Synchronous Servo Motor
- Mounting Support
- Flange
- Rotor Inertia
- 0.173 kg·cm²
- Standards
- IEC 61800-3, IEC 50347, IEC 60072-1, IEC 50178, EN 61800-3
- Mercury Free
- Yes
- Country of Origin
- Germany
Nominal Speed1600 rpm at 24 V, 3400 rpm at 48 V
Peak Stall Torque1.62 N.m (14.34 lbf.in)
Current Consumption7000 mA maximum continuous, 8500 mA peak
Protection TypeOverload of output voltage, Safe torque off, Short circuit of output voltage
Speed Feedback Resolution16384 points/turn
Maximum Radial Force107 N
Operating Ambient Temperature0 to 40 °C without derating, 40 to 55 °C with 2% per °C derating
Operating Altitude<= 1000 m without derating
Vibration Resistance20 m/s² (10 to 500 Hz), 10 cycles IEC 60068-2-6
IP Degree of ProtectionIP41 shaft bushing, IP54 total except shaft bushing (IEC 60034-5)
Frame Size / Motor Flange Size2.24 in (57 mm)
Shaft Length0.79 in (20 mm)
Number of Motor Stacks2
Mounting Holes Diameter0.20 in (5.2 mm)
Centring Collar Diameter1.97 in (50 mm)
Shaft EndUntapped
Electrical ConnectionIndustrial connector
Type of CoolingNatural convection
Product CertificationsUL, TÜV, cUL
RoHS CompliancePro-active compliance
PVC FreeYes
