Schneider Electric ILS1V573PB1A0 integrated drive ILS with stepper motor- 24..36V-pulse/direction w/o RS422- 3.5A
Schneider Electric ILS1V573PB1A0 integrated drive ILS with stepper motor- 24..36V-pulse/direction w/o RS422- 3.5A
- MPN: ILS1V573PB1A0
- PPN: SCH-ILS1V573PB1A0
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1706.66/ EA
Description
integrated drive ILS with stepper motor- 24..36V-pulse/direction w/o RS422- 3.5A
Specifications
Environment
- Product Certifications
- cUL || TÜV || UL
- Ambient Air Temperature For Operation
- 50-65 °C with power derating of 2 % per °C) || 0-50 °C without derating)
- Vibration Resistance
- 20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6
- Ambient Air Temperature For Storage
- -25-70 °C
- Ip Degree Of Protection
- IP41 shaft bushing: conforming to IEC 60034-5 || IP54 total except shaft bushing: conforming to IEC 60034-5
StandardsEN 61800-3 : 2001-02 || EN 61800-3:2001, second environment || IEC 61800-3, Ed 2 || IEC 50178 || IEC 61800-3 || IEC 60072-1 || IEC 50347
Shock Resistance150 m/s² 1000 shocks IEC 60068-2-29
Permissible Ambient Air Temperature Around The Device105 °C power amplifier || 110 °C motor
Relative Humidity15-85 % without condensation
Operating Altitude<= 1000 m without derating
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1411002EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1411002EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

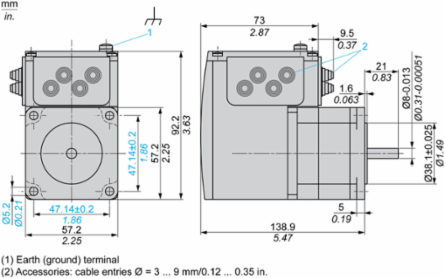

Complementary
- Circle Diameter Of The Mounting Holes
- 66.6 mm
- Maximum Mechanical Speed
- 3000 rpm
- Maximum Radial Force Fr
- 50 N
- Number Of Motor Stacks
- 3
- Continuous Stall Torque
- 1.5 N.m
- Discrete Input Current
- 10-10 mA at 24 V safety input
- Marking
- CE
- Net Weight
- 2 kg
- Centring Collar Diameter
- 38.1 mm
- Peak Stall Torque
- 1.5 N.m
- Shaft Diameter
- 8 mm
- Supply Voltage Limits
- 18-40 V
- Speed Feedback Resolution
- 1.8°, 0.9°, 0.72°, 0.36°, 0.18°, 0.09°, 0.072°, 0.036° || 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps
- Service Life In Hours
- 20000 h bearing
- Feedback Type
- index pulse
- Accuracy Error
- +/- 6 arc min
- Maximum Axial Force Fa
- 100 N tensile force) || 8.4 N force pressure)
- Voltage State 1 Guaranteed
- 15...30 V
Current Consumption3500 mA maximum continuous
Maximum Switching Current100 mA per output || 200 mA total
Mounting Supportflange
Rotor Inertia0.38 kg.cm²
Centring Collar Depth1.6 mm
Second Shaftwithout second shaft end
Shaft Length21 mm
Voltage State 0 Guaranteed-3...4.5 V
Motor Flange Size57 mm
Number Of Mounting Holes4
Discrete Output Voltage23...25 V
Mounting Holes Diameter5.2 mm
Type Of Coolingnatural convection
Shaft Enduntapped
Protection Typesafe torque off || short circuit of the output voltage || overload of output voltage
Input/Output Type4 signals (each be used as input or output)
Associated Fuse Rating10 A
Specifications
- Range Of Product
- Lexium integrated drive
- Network Type
- DC
- Number Of Motor Poles
- 6
- Product Or Component Type
- motion integrated drive
- Length
- 138.9 mm
- Communication Interface
- pulse/direction 5 V without RS422, integrated
- Motor Type
- 3-phase stepper motor
- Electrical Connection
- printed circuit board connector
- Device Short Name
- ILS
Holding Torque1.7 N.m
Winding Typemedium speed of rotation and medium torque
Holding Brakewithout
Network Number Of Phasessingle phase
[Us] Rated Supply Voltage24 V || 36 V
Gear Box Typewithout
Nominal Speed200 rpm 24 V || 500 rpm 36 V
Nominal Torque1.5 N.m
