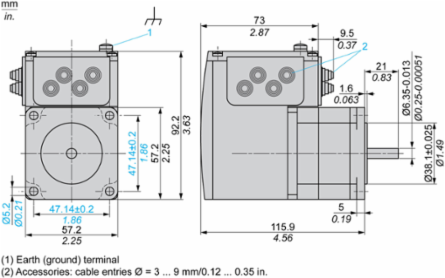

Schneider Electric ILS1U572PB1A0 Integrated Drive with Stepper Motor, 24-36V, 3.5A, 3000 RPM, 1.6 kg
Schneider Electric ILS1U572PB1A0 Integrated Drive with Stepper Motor, 24-36V, 3.5A, 3000 RPM, 1.6 kg
- MPN: ILS1U572PB1A0
- PPN: SCH-ILS1U572PB1A0
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1570.14/ EA
Description
The Schneider Electric Integrated Drive with Stepper Motor is engineered for optimal performance in motion control applications, providing a seamless integration of advanced technology and reliability. Operating within a voltage range of 24-36V and capable of delivering 3.5A, this drive facilitates precise control with an impressive speed of 3000 RPM, making it a versatile choice for various automation tasks. Weighing 1.6 kg, this unit is designed for easy installation and maintenance, ensuring that it meets the demands of modern automation and control systems.
Specifications
- Voltage
- 24-36 V
- Nominal Speed
- 300 rpm at 24 V, 600 rpm at 36 V
- Nominal Torque
- 0.9 N.m
- Peak Stall Torque
- 0.9 N.m
- Supply Voltage Limits
- 18-40 V
- Speed Feedback Resolution
- 1.8°, 0.9°, 0.72°, 0.36°, 0.18°, 0.09°, 0.072°, 0.036°; 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps
- Maximum Radial Force
- 24 N
- Service Life
- 20000 h bearing
- Ambient Air Temperature for Operation
- 0 to 50 °C without derating, up to 65 °C with 2%/°C derating
- Motor Type
- 3-phase stepper motor
- Phase
- Single phase
- Mounting Support
- Flange
- Number of Motor Stacks
- 2
- Centring Collar Depth
- 1.6 mm (0.06 in)
- Mounting Holes Diameter
- 5.2 mm (0.20 in)
- Shaft Diameter
- 6.35 mm (0.25 in)
- Net Weight
- 1.6 kg (3.53 lb)
- Voltage State 0 Guaranteed
- -3 to 4.5 V
- Discrete Input Current
- 10 mA at 24 V safety input
- Maximum Switching Current
- 100 mA per output, 200 mA total
- IP Degree of Protection
- IP41 shaft bushing, IP54 total except shaft bushing (IEC 60034-5)
- Operating Altitude
- ≤ 1000 m without derating
- Vibration Resistance
- 20 m/s² 10-500 Hz, 10 cycles (IEC 60068-2-6)
- Standards
- EN 61800-3:2001, IEC 50178, IEC 61800-3 Ed 2, IEC 50347, IEC 60072-1
- China RoHS Compliance
- Yes
- PVC Free
- Yes
- RoHS Exemption
- Yes
- Network Type
- DC
- Range of Product
- Lexium integrated drive
- Feedback Type
- Index pulse
- Weee Compliance
- Complies with EU waste directives
- Circularity Profile
- ENVEOLI1411002EN
- Protection Type
- Safe torque off, short circuit protection, overload protection
- Communication Interface
- Pulse/direction 24 V, integrated
Current Consumption3.5 A maximum continuous
Maximum Mechanical Speed3000 rpm
Holding Torque1.02 N.m
Continuous Stall Torque0.9 N.m
Associated Fuse Rating10 A
Accuracy Error+/- 6 arc min
Maximum Axial Force100 N tensile, 8.4 N pressure
Type of CoolingNatural convection
Length115.9 mm (4.56 in)
Number of Motor Poles6
Electrical ConnectionPrinted circuit board connector
Motor Flange Size57 mm (2.24 in)
Centring Collar Diameter38.1 mm (1.50 in)
Number of Mounting Holes4
Circle Diameter of Mounting Holes66.6 mm (2.62 in)
Shaft Length21 mm (0.83 in)
Input/Output Type4 signals (each can be input or output)
Voltage State 1 Guaranteed15 to 30 V
Discrete Output Voltage23 to 25 V
Rotor Inertia0.22 kg.cm²
Ambient Air Temperature for Storage-25 to 70 °C (-13 to 158 °F)
Relative Humidity15-85% without condensation
Shock Resistance150 m/s², 1000 shocks (IEC 60068-2-29)
Product CertificationsUL, cUL, TÜV
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
MarkingCE
Device Short NameILS
Gear Box TypeWithout
Holding BrakeWithout
Environmental DisclosureENVPEP1411002EN
Warranty18 months
Winding TypeMedium speed rotation, medium torque
Second ShaftWithout second shaft end
