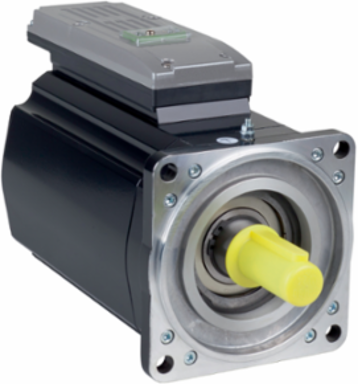

Integrated Servo Motor 7.5 Nm 3000 rpm Natural Convection
Schneider Electric

Schneider Electric ILM1401P01A0000 Integrated Servo Motor 7.5 Nm 3000 rpm Natural Convection

  • MPN: ILM1401P01A0000
  • PPN: SCH-ILM1401P01A0000

CAD

$4813.49

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Engineered for efficiency and precision in motion control applications, this integrated servo motor from Schneider Electric offers a robust torque output of 7.5 Nm and operates at an impressive speed of 3000 rpm. Designed with natural convection cooling, it ensures optimal performance while maintaining reliability in various environments. This servo motor is an essential component for modern automation systems, delivering seamless integration and control capabilities for enhanced operational effectiveness. Whether optimizing machinery or advancing automated processes, this product stands out for its commitment to quality and innovative design in automation and control solutions.

Documentation & Downloads

Specifications

Additional

Torque
7.5 N.m
Rated Supply Voltage
250...700 V
Continuous Stall Torque
7.5 N.m
Nominal Output Power
1450 W
Maximum Current Irms
18.8 A
Shaft Diameter
24 mm
Key Width
40 mm
Speed Feedback Resolution
128 periods
Motor Flange Size
140 mm
Back EMF Constant
108 V/krpm 20 0C
Rotor Inertia
7.41 kg.cm
Stator Inductance
19.1 mH 20 0C Ph/Ph || 9.55 mH 120 0C Ph/N
Maximum Axial Force
0.2 x Fr
Number of Motor Stacks
1
Centring Collar Depth
3.5 mm
Mounting Holes Diameter
11 mm
Net Weight
12.5 kg
Country of Origin
Germany
Speed3000 rpm
Continuous Stall Current4.7 A
Peak Stall Torque27 N.m
Nominal Torque4.6 N.m
Line Rated Current2.9 A
Shaft Length50 mm
Feedback TypeAbsolute single turn SinCos Hiperface
Mounting SupportInternational standard flange
Torque Constant1.6 N.m/A 120 0C
Number of Motor Poles10
Stator Resistance1.81 Ohm 20 0C Ph/Ph || 1.26 Ohm 120 0C Ph/N
Maximum Radial Force2210 N @ 1000 rpm, 1760 N @ 2000 rpm, 1530 N @ 3000 rpm
Length254 mm
Centring Collar Diameter130 mm
Number of Mounting Holes4
Circle Diameter of Mounting Holes165 mm
IP Degree of ProtectionIP54
ComplianceREACH, RoHS, PVC free
