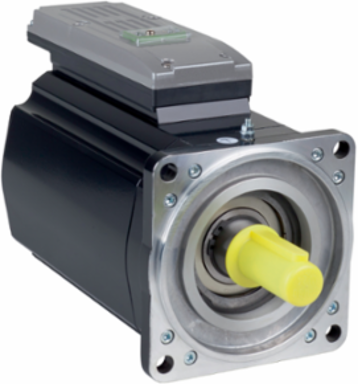

Schneider Electric ILM1402P01F0000 Integrated Servo Motor 12.5 Nm 2000 RPM with Brake
Schneider Electric ILM1402P01F0000 Integrated Servo Motor 12.5 Nm 2000 RPM with Brake
- MPN: ILM1402P01F0000
- PPN: SCH-ILM1402P01F0000
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This integrated servo motor from Schneider Electric combines high performance with efficient functionality, delivering a robust torque of 12.5 Nm at a remarkable speed of 2000 RPM. Its built-in brake enhances safety and precision in motion control applications, making it an ideal choice for automation tasks that require reliability and accuracy. Designed to meet the rigorous demands of motion control, this motor is well-suited for a variety of industrial applications, ensuring seamless operation and compatibility within automated systems.
Specifications
- Nominal Output Power
- 1910 W
- Continuous Stall Torque
- 12.5 N.m
- Nominal Torque
- 9.1 N.m
- Rated Supply Voltage
- 250...700 V
- Line Rated Current
- 3.7 A
- Back EMF Constant
- 173 V/krpm at 20 0C
- Maximum Axial Force
- 0.2 x Radial Force
- Torque
- 12.5 N.m
- Holding Brake
- Yes
- Nominal Speed
- 2000 rpm
- Shaft Length
- 50 mm
- Motor Flange Size
- 140 mm
- Number of Mounting Holes
- 4
- Circle Diameter of Mounting Holes
- 165 mm
- Centring Collar Depth
- 3.5 mm
- Number of Motor Stacks
- 2
- Shaft End
- Untapped
- Stator Inductance
- 22 mH at 20 0C Ph/Ph, 11 mH at 120 0C Ph/N
- IP Degree of Protection
- IP54
- PVC Free
- Yes
- Reach Free of SVHC
- Yes
- Sustainable Offer Status
- Green Premium product
Nominal Speed2000 rpm
Peak Stall Torque55 N.m
Maximum Current Irms24 A
Continuous Stall Current4.8 A
Torque Constant2.6 N.m/A at 120 0C
Maximum Radial Force2430 N at 1000 rpm, 1930 N at 2000 rpm
Speed Feedback Resolution128 periods
Holding Torque23 N.m
Integrated BrakeYes
Shaft Diameter24 mm
Key Width40 mm
Mounting SupportInternational standard flange
Mounting Holes Diameter11 mm
Centring Collar Diameter130 mm
Length347 mm
Rotor Inertia12.68 kg.cm8
Stator Resistance1.9 Ohm at 20 0C Ph/Ph, 1.32 Ohm at 120 0C Ph/N
Cooling TypeNatural convection
Mercury FreeYes
RoHS CompliancePro-active compliance, Mercury free, PVC free
Range of ProductPacDrive 3
Country of OriginGermany
