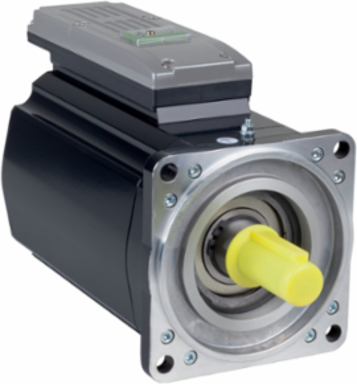

Schneider Electric ILM1401M01A0000 integrated servo motor - 8.5 Nm - 1500 rpm - without brake
Schneider Electric ILM1401M01A0000 integrated servo motor - 8.5 Nm - 1500 rpm - without brake
- MPN: ILM1401M01A0000
- PPN: SCH-ILM1401M01A0000
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$4900.11/ EA
Description
integrated servo motor - 8.5 Nm - 1500 rpm - without brake
Specifications
Complementary
- Circle Diameter Of The Mounting Holes
- 165 mm
- Shaft Diameter
- 24 mm
- Mounting Holes Diameter
- 11 mm
- Maximum Radial Force Fr
- 2210 N 1000 rpm || 1760 N 2000 rpm
- Nominal Torque
- 8.3 N.m
- Rotor Inertia
- 7.41 kg.cm²
- Back Emf Constant
- 175 V/krpm 20 °C
- Maximum Axial Force Fa
- 0.2 x Fr
- Centring Collar Depth
- 3.5 mm
- Peak Stall Torque
- 27 N.m
- Holding Brake
- without
- Stator Resistance
- 4.58 Ohm 20 °C Ph/Ph || 3.18 Ohm 120 °C Ph/N
- Second Shaft
- without second shaft end
- Shaft Length
- 50 mm
- Length
- 254 mm
- Torque Constant
- 2.65 N.m/A 120 °C
- Stator Inductance
- 50 mH 20 °C Ph/Ph || 25 mH 120 °C Ph/N
- Motor Flange Size
- 140 mm
Number Of Mounting Holes4
Key Width40 mm
Type Of Coolingnatural convection
Mounting Supportinternational standard flange
Number Of Motor Stacks1
Number Of Motor Poles10
Continuous Stall Torque8.5 N.m
Shaft Enduntapped
Nominal Speed1500 rpm
Feedback Typeabsolute single turn SinCos Hiperface
Speed Feedback Resolution128 periods
[In] Rated Current3.15 A
Continuous Stall Current3.2 A
Nominal Output Power1300 W
Net Weight12.5 kg
Centring Collar Diameter130 mm
Maximum Current Irms14.6 A
[Us] Rated Supply Voltage250...700 V
Specifications
- Range Of Product
- PacDrive 3
- Device Short Name
- ILM
Product Or Component Typeservo motor integrated drive
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1409011EN
- Pvc Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1409011EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Environment
- Ip Degree Of Protection
- IP54
