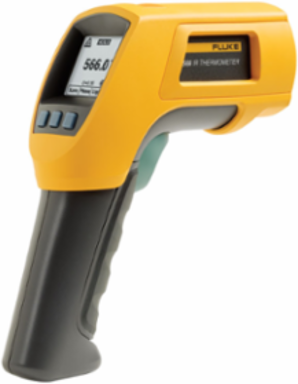

Fluke FLUKE 566 566 Thermal Gun Infrared & Contact Thermometer Fluke 566
- MPN: FLUKE 566
- UPC: 095969400367
- PPN: FLU-FLUKE-566
CAD
$768.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

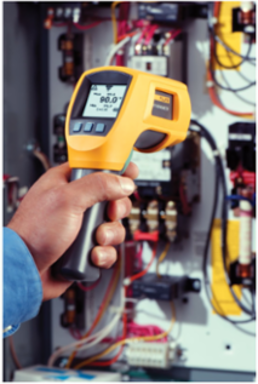

566 Thermal Gun Infrared & Contact Thermometer Fluke 566
Documentation & Downloads
Specifications
Product Specifications
- Infrared temperature range
- -40°C to 650°C (-40°F to 1202°F)
- Display resolution
- 0.1°C / 0.1°F
- Infrared response time
- < 500 msec
- Thermocouple Type-K input accuracy
- -270°C to -40°C: ±(1°C + 0.2°/1°C) (-454°F to -40°F: ±(2°F + 0.2°/1°F)) || -40°C to 1372°C: ±1% or 1°C (-40°F to 2501°F: ±1% or 2°F), whichever is greater
- Laser sighting
- Single-point laser < 1 mw output Class 2 (II) operation, 630 nm to 670 nm
- Emissivity adjustment
- By built-in table of common materials or digitally adjustable from 0.10 to 1.00 by 0.01
- PC interface and cable
- None
- Min/Max/Avg/Dif
- Yes
- Backlight
- Two levels, normal and extra bright for darker environments
- Switchable Celsius and Fahrenheit
- Yes
- Battery life
- If used continuously: Laser and backlight on, 12 hours; laser and backlight off, 100 hours
- Storage temperature
- -20°C to 60°C (-40°F to 140°F)
- Bead thermocouple Type-K accuracy
- ±1.1°C (2.0°F) from 0°C to 260°C (32°F to 500°F),typically within 1.1°C (2.0°F) from -40°C to 0°C (-40°F to 32°F)
Infrared accuracy< 0°C (32°F): ±(1.0°C (±2.0°F) + 0.1°/1°C or°F); || > 0°C (32°F): ±1% or ±1.0°C (±2.0°F), whichever is greater
Infrared spectral response8 µm to 14 µm
Thermocouple Type-K input temperature range-270°C to 1372°C (-454°F to 2501°F)
D:S (distance to measurement spot size)30:1
Minimum spot size19 mm (0.75 in)
Data storage with date/time stamp20 points
Hi/Low alarmsAudible and two-color visual
DisplayDot matrix 98 x 96 pixels with function menus
Trigger lockYes
Power2 AA/LR6 Batteries
Operating temperature0°C to 50°C (32°F to 122°F)
Bead thermocouple Type-K range-40°C to 260°C (-40°F to 500°F)
