Fluke FLUKE 561 561 HVAC Infrared & Contact Thermometer Fluke 561
- MPN: FLUKE 561
- UPC: 095969332538
- PPN: FLU-FLUKE- 561
CAD
$437.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

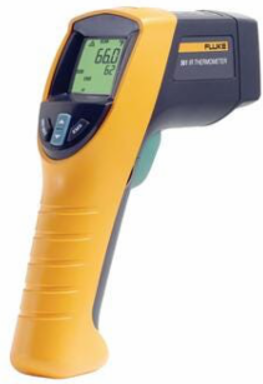

561 HVAC Infrared & Contact Thermometer Fluke 561
Features
- Contact and non-contact IR thermometer for measuring up close or at a distance, without a ladder
- Measures temperature from -40°C to 550° C (-40°F to 1022°F)
- Works with all standard mini-connector type K thermocouples
- Provides single-point laser sighting
- Allows easy emissivity adjustment for measuring pipes and other shiny surfaces more accurately
Documentation & Downloads
Specifications
General Specifications
- Temperature
- -40 to 550°C (-40 to 1022°F)
- D:S (distance to spot size)
- 12:1
- Display accuracy [assumes ambient operating temperature of 23°C (73°F) to 25°C (77°F)]
- ±1.0% of reading ±1% of reading or ±1°C (±2°F), whichever is greater below 0°C / 32°F, ±1°C (±2°F) ±0.1°/1°
- Repeatability
- ±0.5% of reading or ±1°C (±2°F), whichever is greater
- Laser sighting
- Single point laser
- Laser power
- Class 2(II) operation; Output < 1 mW, wavelength 630-670 nm
- Power, battery life
- 2 AA batteries (alkaline or NiCD)
- Display hold
- 7 seconds
- Warranty
- 2 years
- Storage temperature
- -20°C to 65°C (-25°F to 150°F)
- Thermocouple Type K mini adapter input
- Yes, compatible with industry standard K type probes with mini-connector. Displays to the thermometer temperature range.
- HVAC measurement guide
- Yes
Display resolution0.1°C (0.1°F) of reading
Easy emissivity selectorLow (0.3), medium (0.7). high (0.95)
Response time500 mSec (95% of reading)
Spectral response8 µm to 14 µm
Laser shutoffLaser turns off above ambient temperature of 40°C (104°F)
Relative humidity10% to 90% RH non-condensing, at < 30°C (86°F)
Battery life12 hours
Backlit displayYes, LCD with dual temperatures (current and MAX/MIN/DIF/KTC), low battery, F/C indicator, and Scan/Hold options
Operating temperature0°C to 50°C (32°F to 120°F)
MAX, MIN, DIF temperaturesYes
Thermocouple Type K fabric hook-and-loop fastener pipe probeYes, with a temperature range of 0°C to 100°C (32°F to 212°F) and accuracy of ±2.2°C (±4°F)
