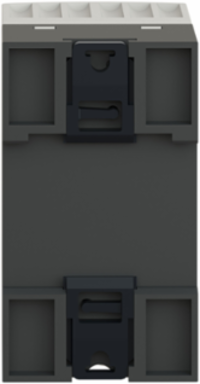

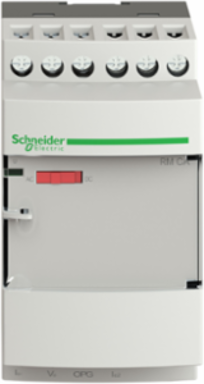

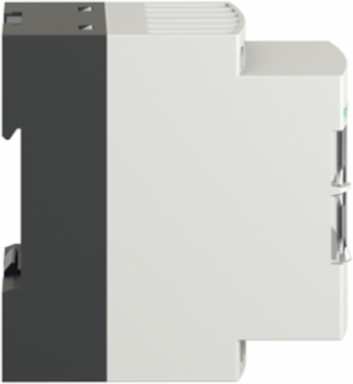

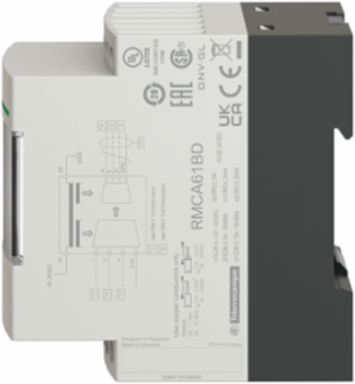

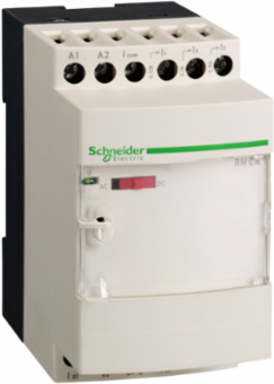

Schneider Electric RMCA61BD Isolated Analog Converter 0-15A to 0-10V/4-20mA, 24V DC
- MPN: RMCA61BD
- PPN: SCH-RMCA61BD
- UNSPSC: 32151603
CAD
$294.58
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This voltage/current converter is part of the Harmony Analog range. It allows conversion of electrical power signals, both AC and DC. Its supply voltage is 24V DC, isolated. It features for current inputs with a range of 0A to 1.5A, 0A to 5A, 0A to 15A (AC/DC). It has outputs with a switchable voltage/current range of 0V to 10V, 0mA to 20mA, and 4mA to 20mA. It also allows the connection distance between a sensor and the measurement acquisition device to be increased. 0 It weighs 0.140Kg. 0 0 Conforming to IEC standards, UL and CSA certified, this converter is suitable for universal use. 0 0 0 0 Quick and intuitive setting, easy to use with fixed input and output values according to the market needs. The settings are secure with sealable protective cover. 0 0 0 0
Features
- Designed to convert the signals from sensors or electrical measurement devices into standard electrical signals
- Experience unprecedented accuracy, predictive maintenance, and superior security
- Reverse polarity, overvoltage and short circuit protection
- Output with fallback value if no input signal is present
- Compatible with a wide range of applications, such as hoisting, packaging, lifts, textile, pumping, and water
- Compatible with automation platforms and controllers
- Quick and intuitive setting
- Easy to use
- Secure setting sealable protective cover
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Indonesia |
|---|
| Weight | 149.1 g |
|---|
Complementary Attributes
| Ui Rated Insulation Voltage | 2 kV |
|---|
| Us Rated Supply Voltage | 24 V DC +/- 20 %, isolated |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Analogue Output Current2 | -30-0 mA 0...20 mA no input or input wire broken, -30-0 mA 0...20 mA no input or input wire broken, -30-0 mA 0...20 mA no input or input wire broken, -30-0 mA 0...20 mA no input or input wire broken, -30-0 mA 0...20 mA no input or input wire broken, -30-0 mA 0...20 mA no input or input wire broken4-30 mA 4...20 mA no input or input wire broken |
| Current Consumption | <= 70 mA voltage output, <= 70 mA voltage output, <= 90 mA current output, <= 90 mA current output<= 70 mA voltage output, <= 70 mA voltage output, <= 90 mA current output, <= 90 mA current output |
| Protection Type | reverse polarity protection on output, short-circuit protection on output, overvoltage protection on output (+/- 30 V) |
| Certificate Agency | CSA, UL, GL |
| Carbon Footprint Of The Distribution Phase A4 | 0.0192369316, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0 kg CO2 eq., 0.0011588092 |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 114 kg CO2 eq., 113.78 |
| Local Publishable Date | 2026-01-12 |
| Use Carbon Footprint | 113.78 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Local Signalling | LED (green) for power ON |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Harmony Analog |
| Resistance To Fast Transients | 1 kV IEC 61000-4-4 on input-output)2 kV IEC 61000-4-4 on power supply) |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 117 kg CO2 eq. |
| Database Version | 2015-04 |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Analogue Output Voltage2 | -15...0 V no input or input wire broken, -15...0 V no input or input wire broken-15...0 V no input or input wire broken, -15...0 V no input or input wire broken |
| Fire Resistance | 850 °C IEC 60695-2-1, 850 °C UL |
| Safety Reliability Data | B10d = 22108, MTTFd = 23.9 years |
| Disturbance Radiated/Conducted | CISPR 11, CISPR 22 group 1 - class B |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.0763515102, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 3 kg CO2 eq., 3.4405077634 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2511011EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Fixing Mode | by screws (mounting plate)clip-on (35 mm symmetrical DIN rail) |
| Marking | CE |
| Product Or Component Type | voltage/current converter |
| Resistance To Electrostatic Discharge | 6 kV in contact)IEC 61000-4-2 level 38 kV in air)IEC 61000-4-2 level 3 |
| Returnability | Yes |
| Software Version | EIME v5.5 |
| Tightening Torque | 0.6-1.1 N.m |
| Vibration Resistance | 5 gn (f= 10-100 Hz) conforming to IEC 60068-2-6 |
| Data Source | extrapolated product |
| Customs Code | 8543709860 |
| Functional Unit Description | To convert signals emitted by sensors or electrical measurement devices, into standard electrical signals that are compatible with automation platforms and controllers (thermal processes, speed, etc.). during 10 years with a 100% use rate, in compliance with French standard. |
| Functional Unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 192.72 |
Environment Attributes Main
| Ambient Air Temperature For Operation | 0-50 °C mounting side by side, 0-60 °C 2 cm spacing |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 117.3172550144 |
| Environmental Disclosure | ENVPEP2511011EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2016-09-01 |
| Psr Version | PSR-0005-ed1-2012 12 11 |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2511011EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2511011EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | voltage/current converter |
|---|
| Range Of Product | Harmony Analog |
|---|
ETIM
| ETIM 8 | EC002048 |
|---|---|
| ETIM 10 | EC002048 |
| ETIM 9 | EC002048 |
|---|
Output Attributes
| Analogue Output Type | current 0...20 mA <= 500 Ohm by cabling, current 4...20 mA <= 500 Ohm by cabling, voltage 0...10 V >= 100 kOhm by cabling |
|---|
Surge Protection And Filtering Attributes
| Surge Withstand | 0.5 kV 1.2/50 µs IEC 61000-4-5 |
|---|
Contractual Warranty Attributes
| Warranty | 18 months |
|---|
Input Attributes
| Analogue Input Type | current 0...1.5 A AC/DC 50/60 Hz, current 0...15 A AC/DC 50/60 Hz, current 0...5 A AC/DC 50/60 Hz |
|---|
