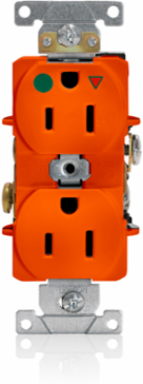

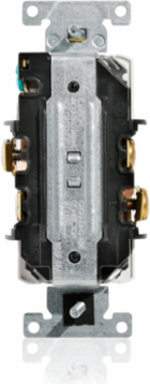

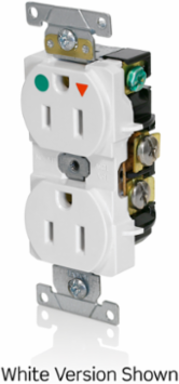

Leviton 8200-IG 15 Amp Hospital Grade Isolated Ground Duplex Receptacle, PBT Polyester, 125 VAC
- MPN: 8200-IG
- UPC: 078477057339
- PPN: LEV-8200-IG
CAD
$27.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Isolated Ground Duplex Receptacle Outlet, Heavy-Duty Hospital Grade, Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Orange
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | True |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| Certification/Listing | cULus, NOM-ANCE |
| RoHS | RoHS Compliant |
| Applicable Standards | UL 498, Fed Spec W-C-569, CSA 22.2 No. 42 |
|---|---|
| NOM | 057 |
| Warranty | 10-Year Limited |
Material Specifications
| At Rated Voltage | 1/2 HP |
|---|---|
| Clamp Nuts | 0.030" Brass |
| Ground Clips | Brass |
| Grounding Screw | #8 Hex Head, Triple-Drive Bass |
| Mounting Screws | Triple-Drive Plated Steel |
| Strap Material | Steel (Galvanized G60) |
| Terminal Screws | #8 Triple-Drive Brass |
| Body Material | PBT Polyester Blend |
|---|---|
| Face Material | PBT Polyester Blend |
| Ground Contacts | 0030" Brass |
| Line Contacts | 0.030" Phosopher Bronze |
| Shutter Mechanism | Acetal |
| Terminal Clamp | Brass |
Mechanical Specifications
| Product ID | Ratings are permanently marked on device |
|---|---|
| Terminal Accom. | 14-10 AWG |
| Termination | Back or Side Wire |
| Screw Terminal Torque | 14-18 in-lbs |
|---|---|
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Wire Type | Stranded or Solid |
Product Features
| Device Type | Duplex Receptacle Outlet |
|---|---|
| Function | Isolated Ground |
| Feature 4 | Smooth Face |
|---|---|
| Grade | Heavy-Duty Hospital Grade |
Environmental Specifications
| Body Material | PBT Polyester Blend |
|---|---|
| Face Material | PBT Polyester Blend |
| Ground Clips | Brass |
| Grounding Screw | #8 Hex Head, Triple-Drive Bass |
| Mounting Screws | Triple-Drive Plated Steel |
| Shutter Mechanism | Acetal |
| Terminal Screws | #8 Triple-Drive Brass |
| Clamp Nuts | 0.030" Brass |
|---|---|
| Flammability | Rated V-2 per UL 94 |
| Ground Contacts | 0030" Brass |
| Line Contacts | 0.030" Phosopher Bronze |
| Operating Temperature | -40°C to 60°C |
| Strap Material | Steel (Galvanized G60) |
Electrical Specifications
| Amperage | 15 A |
|---|---|
| Flammability | Rated V-2 per UL 94 |
| Operating Temperature | -40°C to 60°C |
| Temperature Rise | Max 30C temperature rise at full rated current |
| Wire | 3 |
| Dielectric Voltage | Withstands 3000V min |
|---|---|
| Grounding | Self-Grounding |
| Pole | 2 |
| Voltage | 125 VAC |
AC Horsepower Ratings
| Amperage | 15 A |
|---|---|
| Dielectric Voltage | Withstands 3000V min |
| Pole | 2 |
| Voltage | 125 VAC |
| At Rated Voltage | 1/2 HP |
|---|---|
| Grounding | Self-Grounding |
| Temperature Rise | Max 30C temperature rise at full rated current |
| Wire | 3 |
