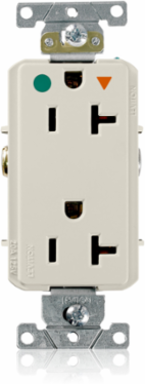

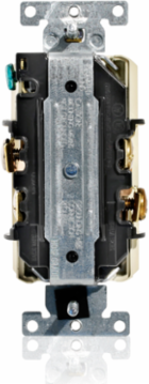

Leviton D8300-IGT 20 Amp Decora Plus Isolated Ground Duplex Receptacle, 125 VAC, Hospital Grade, Light Almond
- MPN: D8300-IGT
- UPC: 078477900710
- PPN: LEV-D8300-IGT
CAD
$54.36
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Decora Plus Isolated Ground Duplex Receptacle Outlet, Heavy-Duty Hospital Grade, Smooth Face, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Light Almond
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Material Specifications
- Body Material
- PBT Polyester Blend
- Color
- Light Almond
- Device Type
- Duplex Receptacle Outlet
- Feature 4
- Smooth Face
- Grade
- Heavy-Duty Hospital Grade
- Ground Contacts
- 0.030" Brass
- Line Contacts
- 0.030" Phosphor Bronze
- Strap Material
- Steel
- Terminal Screws
- #8 Triple-Drive Brass
BrandDecora Plus
Color / FeatureLight Almond
Face MaterialPBT Polyester Blend
FunctionIsolated Ground
Ground ClipsBrass
Grounding Screw#8 hex head, triple drive Brass
Mounting ScrewsTriple-Drive Plated Steel
Terminal ClampsBrass
Mechanical Specifications
- Horsepower Rating
- 1 HP
- Screw Terminal Torque
- 14-18 in-lbs
- Terminal Accom.
- #14 AWG - #10 AWG
- Termination
- Back or Side Wire
Product IDRatings are permanently marked on device
Shutter MechanismAcetal
Terminal IDBrass - Hot, Green - Ground, Silver - Neutral
Wire TypeStranded or Solid
AC Horsepower Rating
- Flammability
- Rated V-0 per UL 94
- Operating Temperature
- -40°C to 75°C
Horsepower Rating1 HP
Product Features
- Certification/Listing
- cULus, NOM-ANCE
Warranty
- Amperage
- 20 A
- Grounding
- Self-Grounding
- Temperature Rise
- Max 30 °C after 250 cycles OL at 200 percent rated current
- Warranty
- 10-Year Limited
Dielectric VoltageWithstands 3000 V minimum
Pole2
Voltage125 VAC
Wire3
Environmental Specifications
- Flammability
- Rated V-0 per UL 94
- Product ID
- Ratings are permanently marked on device
- Terminal ID
- Brass - Hot, Green - Ground, Silver - Neutral
- Wire Type
- Stranded or Solid
Operating Temperature-40°C to 75°C
Terminal Accom.#14 AWG - #10 AWG
TerminationBack or Side Wire
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 3000 V minimum
- Ground Clips
- Brass
- Grounding
- Self-Grounding
- Line Contacts
- 0.030" Phosphor Bronze
- Pole
- 2
- Temperature Rise
- Max 30 °C after 250 cycles OL at 200 percent rated current
- Terminal Screws
- #8 Triple-Drive Brass
- Wire
- 3
Body MaterialPBT Polyester Blend
Face MaterialPBT Polyester Blend
Ground Contacts0.030" Brass
Grounding Screw#8 hex head, triple drive Brass
Mounting ScrewsTriple-Drive Plated Steel
Strap MaterialSteel
Terminal ClampsBrass
Voltage125 VAC
Standards & Certifications
- ANSI
- C-73
- Certification/Listing
- cULus, NOM-ANCE
Applicable StandardsUL 498, Fed Spec W-C-596, CSA C22.2. No. 42
RoHSRoHS Compliant
