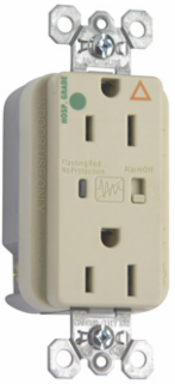

Pass & Seymour IG8200ISP Isolated Ground Surge Protective Duplex Receptacle 15A 125V, Ivory
- MPN: IG8200ISP
- UPC: 785007193626
- PPN: P-S-IG8200ISP
- UNSPSC: 39121406
CAD
$150.26
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Isolated Ground Surge Protective Duplex Receptacle 15A 125V, Ivory
Features
- Solid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place.
- LED Indication: Steady green = protected, Flashing re = not protected, OFF = no power to unit
- Audible alarm alert of MOV damage. Alarm able to be turned On/Off.
- Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation.
- Triple-wipe, copper-alloy contacts for superior, more dependable connection.
- External screw-pressure-plate back and side wire terminals including ground with external back wire clamps (exclusive) accept #14 - #10 AWG copper or copper-clad, solid or stranded conductors.
- External pressure plate feature allows two conductors to be terminated by a single screw.
- Thermal protection in 3 modes. 3 17mm dual pack MOVs absorb up to 340 Joules of excess energy in each leg (L-N, L-G, N-G) with 24,000 amp current handling capability for full, equal and symmetrical protection.
- Protection response time in less than one nanosecond.
- Plastic barrier isolates grounding terminal from mounting strap and metal boxes.
- For covering patents, see www.legrand.us/patents.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Product Line | Pass & Seymour |
| Standard | cUL UL1449; UL498: CSA C22.2 No. 42: ANSI/EEE C62.41 (Formerly IEEE 587); ANSI/IEEE C62.45 Installation Categories “A” (Ring Wave) “B” (Unidirectional Impulse). |
| Special Features | IG symbol and Isolated Ground markings for easy identification and circuit delineation. Plastic barrier isolates grounding terminal from mounting strap and metal boxes. Solid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place. LED Indication: steady green = protected, flashing red = not protected, OFF = no power to unit. Audible alarm alert of MOV damage. Alarm able to be turned On/Off. Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation. Impact-resistant nylon exterior resists impacts and scrapes. Triple-wipe, copper-alloy contacts for superior, more dependable connection. External screw-pressure-plate back and side wire terminals including ground with external back wire clamps (exclusive) accept #14 - #10 AWG copper or copper-clad, solid or stranded conductors. External pressure plate feature allows two conductors to be terminated by a single screw. Thermal protection in 3 modes. 3 17mm dual pack MOVs absorb up to 340 Joules of excess energy in each leg (L-N, L-G, N-G) with 24,000 amp current handling capability for full, equal and symmetrical protection. Protection response time in less than one nanosecond. |
| Number of Receptacles | 2.0 |
| Features | Audible Alarm; Indicator Lights |
| Application Sector | Commercial; Healthcare |
| Wall Plate Included | No |
| Outlet Type | Hospital Grade; Isolated Ground |
| Number of Poles | Double Pole |
| NEMA Configuration Code | 5-15R |
| Color | Ivory |
|---|---|
| Amperage | 15.0 A |
| Environmental Conditions | Flammability: UL94 V2 |
| Number of Wires | 3.0 |
| Indoor/Outdoor | Indoor |
| Warranty Type | 1-Year Limited Warranty |
| Wire Connection Type | Screw Terminals |
| Connection Location | Back and Side |
| Wire Size | 14 - 10 AWG |
| Voltage | 125.0 V |
