nVent Hoffman IWS242424DE1LG Ergonomic Industrial Workstation 24 x 24 x 12 Inch Steel Light Gray
- MPN: IWS242424DE1LG
- UPC: 783510384364
- PPN: HOF-IWS242424DE1LG
- UNSPSC: 39121325
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

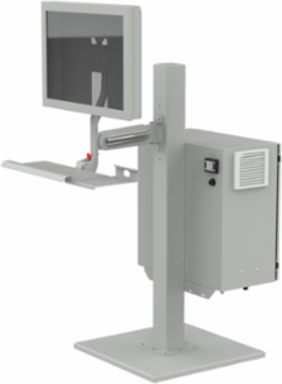

Ergonomic plug-n-play computer workstation to mount LCD and protect PC for industrial environments. This Industrial Workstation, IWS242424DE1LG item measures 24.00x24.00x12.00 with a material of Steel colored Lt Gray.
Features
- Vertical motion pendant arm supports 6-15 lb. (3-7 kg) loads with an internal gas spring counterbalance
- Provides 12-in. (305mm) vertical height adjustment
- Toggle lever locks arm in place when repositioned vertically
- 3 x 3-in. and 4 x 4-in. VESA mounting patterns fit most flat screen monitors
- Arm swivels 340 degrees at monitor end and 180 degrees at mounting end
- Display tilts forward 15 degrees and back 45 degrees to reduce glare
- Display and keyboard stay level as they travel vertically
- Side cable manager protects cables and cords from pulling or chafing
- Monitor shield with lift-off cover
- Includes pedestal with base
- Concept enclosure with quarter turn slotted latches and storage shelf
- Integrated with power distribution, thermal management, network and power connector, USB 3.0 port, and cable entry
- Monitor, keyboard and mouse are not included
- USB 3.0 Type A receptacle to Type A plug
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Configuration | M12 4-pole Femaile to RJ45 Male Ethernet Receptacle |
| Thermal Performance | 4-inch filter fan and exhaust kit |
| Cable Entry Quantity | 4 |
| Width (W) | 715 |
| Finish | Powder Coated |
| Body Thickness | 1.9 |
| Weight | 218 |
| Size | 50.66 x 24.00 x 24.00 |
| Cable Entry | Yes |
| NEMA Rating | 4, 12, 13 |
| Insulation | No |
| Max Enclosure Size (A x B x C) | 610 x 610 x 305 |
|---|---|
| Power Source | 125V Duplex Receptable |
| Power Connector Type | Male 3-pole Receptacle |
| Height (H) | 1,716 |
| Depth (D) | 1,009 |
| Color Code | RAL 7035 |
| Door Thickness | 1.5 |
| Material | Mild Steel |
| Color | Light Gray |
| Mounting | No |
| Number of Outlet | 0 |
