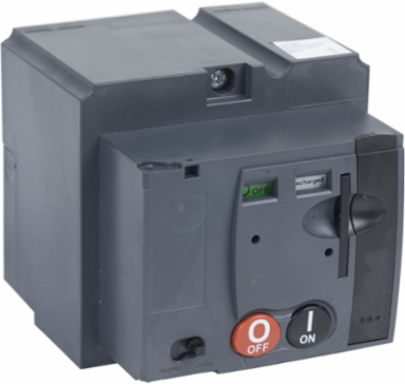

Schneider Electric S31541 PowerPacT J Motor Operator, 208-277VAC, 60Hz, CSA & UL Listed
- MPN: S31541
- PPN: SCH-S31541
- UNSPSC: 39121601
CAD
$4810.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Schneider Electric's motor operator offers exceptional reliability and performance, designed specifically for use in power distribution systems. With a voltage range of 208-277VAC and operating at 60Hz, this component is CSA and UL listed, ensuring compliance with stringent safety standards. Its robust construction and advanced engineering make it an essential choice for applications requiring durable and efficient molded case circuit breakers, providing enhanced control and reliability in a variety of industrial settings.
Features
- Worldwide availability with unique global part numbers
- Flexible and simple offer with proven performance
- Direct access to energy metering and energy efficiency
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| Weight | 1379 g |
|---|
Complementary Attributes
| Uc Control Circuit Voltage | 277 V AC 60 Hz |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | CSA, UL Listed |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 3 kg CO2 eq., 3.2964266869609338 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 9 kg CO2 eq., 9.0820898021309 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Device Application | control |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | PowerPact J |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 14 kg CO2 eq. |
| Database Version | 2022-01 |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase A4 | 0.18032846270928465, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.2562599188229326, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 0.9 kg CO2 eq., 0.88804 |
| Local Publishable Date | 2025-11-13 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Product Category | 4 |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1919 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Product Or Component Type | motor mechanism |
| Returnability | Yes |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Data Source | extrapolated product |
| Customs Code | 8538908120 |
| Functional Unit Description | To provide easy and sure closing/opening operations. The characteristics of this motor mechanism are as follows:& 10- Control voltage: 220-240 V AC 50/60Hz, 208-277 V AC 60Hz& 10- Maximum number of cycles: 20000 C/O (electrical endurance of a NSX250 frame at 50%In, 440V AC)& 10- Maximum number of cycles per minute: 4 C/O& 10- Opening response time: <lt/>700ms& 10- Closing response time: <lt/>80ms& 10- Power consumption: <lt/>500VA& 10- Reference Lifetime: 10 years |
| Functional Unit Unit | unité (unit) |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 13.703144870624051 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Pep Verification Date | 2023-10-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Take Back | No |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2308038_V1-EN |
| Packaging Made With Recycled Cardboard | Yes |
| Pep Code | ENVPEP2308038_V1-EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | motor mechanism |
|---|
| Range Of Product | PowerPact J |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
