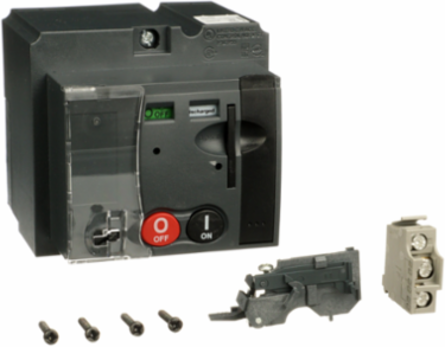

Square D S31540 PowerPacT J Motor Operator 110/130VAC 50/60Hz
- MPN: S31540
- UPC: 785901496274
- PPN: SCH-S31540
- UNSPSC: 39121601
CAD
$4810.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Square D PowerPact H, J and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits Molded case circuit breakers are available with either thermal-magnetic or Micrologic electronic trip units. L-frame breakers are performed only with Micrologic electronic units The motor operator remotely operates the circuit breaker featuring easy and sure operation This field installable Motor operator with rated voltage of 110/130VAC 50/60Hz is for use with PowerPacT J-frame ciruit breakers. This accessory provides double insulation front face, suitability for isolation and remains padlocking possible along with all visible circuit breacer indications and information such as trip unit settings and circuit breaker condition.
Features
- Worldwide availability with unique global part numbers
- Flexible and simple offer with proven performance
- Direct access to energy metering and energy efficiency
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| Weight | 1420 g |
|---|
Complementary Attributes
| Uc Control Circuit Voltage | 120 V AC 50/60 Hz |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | CSA, UL Listed |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 3 kg CO2 eq., 2.6029217391304345 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 26 kg CO2 eq., 25.610273291925466 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Product Or Component Type | motor mechanism |
| Returnability | Yes |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Data Source | extrapolated product |
| Customs Code | 8538908120 |
| Functional Unit Description | The MX release instantaneously opens the circuit breaker when energized, the minimum duration of the pulse operating order must be 200 ms. Service Duration: 10 years.& 10It complies with IEC 60947-2 standard. |
| Functional Unit Unit | Unit |
| Recyclability Potential In % | 74 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase A4 | 0.18568484472049687, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.3166247204968944, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 0 kg CO2 eq., 0.000035545 |
| Local Publishable Date | 2025-11-13 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2525 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Device Application | control |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | PowerPact J |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 29 kg CO2 eq. |
| Database Version | 2022-01 |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2308038EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2308038EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Reach Free Shvc | Yes |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 28.71554014127329 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-12-03 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | motor mechanism |
|---|
| Range Of Product | PowerPact J |
|---|
ETIM
| ETIM 8 | EC001030 |
|---|---|
| ETIM 10 | EC001030 |
| ETIM 9 | EC001030 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
