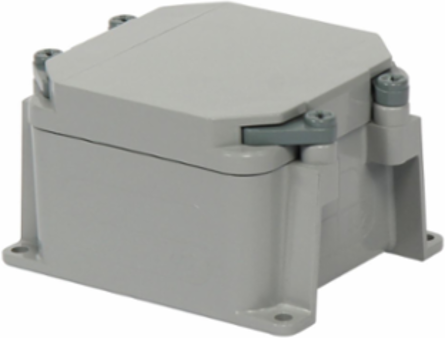

IPEX 277000 PVC Junction Box 4 Inch x 4 Inch x 2 Inch Grey, UL 50, CSA Certified
- MPN: 277000
- UPC: 622454418622
- PPN: IPX-277000
CAD
$13.21
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The Scepter JBox is ideally suited for indoor and outdoor use and made to perform in the most demanding environments. Made of PVC it is extremely durable and resistant to impact in a wide range of temperatures and not adversely affected by water and chemicals. The Scepter JBox is entirely non-metallic, eliminating corrosion concerns with screws and other metal parts and NEMA 1, 2, 3R, 4, 4X, 6*, 6P*, 12 and 13 rated.
Features
- Fasteners are close by hand and tool assist to open and 100% non-metallic
- Integrated Gasket is permanently fixed to the cover – no installation required
- Molded Mounting Feet are located on corners out of the way of conduit connections
- Built-in Gridlines create an easy reference for drilling knockouts
Documentation & Downloads
Specifications
Additional
- Size
- 4 in x 4 in x 2 in
- Color
- Grey
- Weight
- 0.360 kg
- Compliance
- UL 50, UL 50E, CSA C22.2 No.94, CSA C22.2 No.40, CSA C22.2 No.94.1, CSA C22.2 No.94.2
- Flammability Rating
- UL 94V-0
- Mounting
- Molded Mounting Feet on corners
MaterialPVC
Diameter4 in, 2 in
Country of OriginCanada
NEMA Rating1, 2, 3R, 4, 4X, 6, 6P, 12, 13
Outdoor SuitabilityUL 746C
