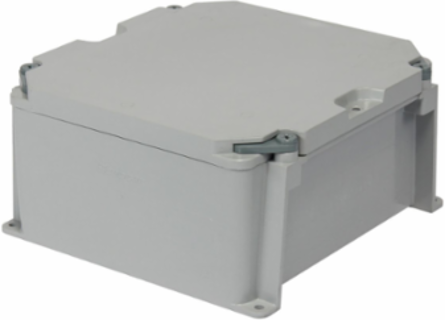

IPEX 277006 PVC Junction Box 8 Inch x 8 Inch x 4 Inch Grey, NEMA Rated, UL Listed
- MPN: 277006
- UPC: 622454418721
- PPN: IPX-277006
CAD
$73.08
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Scepter JBox is ideally suited for indoor and outdoor use and made to perform in the most demanding environments. Made of PVC it is extremely durable and resistant to impact in a wide range of temperatures and not adversely affected by water and chemicals. The Scepter JBox is entirely non-metallic, eliminating corrosion concerns with screws and other metal parts and NEMA 1, 2, 3R, 4, 4X, 6*, 6P*, 12 and 13 rated.
Features
- Fasteners are close by hand and tool assist to open and 100% non-metallic
- Integrated Gasket is permanently fixed to the cover – no installation required
- Molded Mounting Feet are located on corners out of the way of conduit connections
- Built-in Gridlines create an easy reference for drilling knockouts
Documentation & Downloads
Specifications
Additional
- Size
- 8 in x 8 in x 4 in
- Color
- Grey
- Country of Origin
- Canada
- Compliance
- NEMA 1, 2, 3R, 4, 4X, 6, 6P, 12, 13, UL Listed, CSA C22.2 No. 40, CSA C22.2 No. 85, CSA C22.2 No. 94.1, CSA C22.2 No. 94.2, UL 50, UL 50E
- Flame Resistance
- UL 94V-0
- Chemical Resistance
- Resistant to dilute acids, dilute alkalis, oils, greases, alcohols
- Gasket
- Integrated, permanently fixed to cover
- Pole Mount Kit Compatibility
- Fits poles up to 15 in diameter
- Back Panel Compatibility
- Sizes 6 in to 16 in
- Lock-out Option
- Tie-wrap, bolt or padlock compatible for sizes 6 in to 16 in
MaterialPVC
Weight1.792 kg
Electrical RatingIndustrial Control Panels UL 508A
Temperature Range-40ºC to 50ºC (-40ºF to 122ºF)
Impact ResistanceExceeds UL50/50E steel ball impact tests at ambient and -35ºC (-31ºF)
MountingMolded feet located on corners
GridlinesBuilt-in embossed for drilling reference
Back Panel Material14 gauge carbon steel, white epoxy powder-coated
Fastener TypeQuarter-turn, hand close, tool assist to open, non-metallic
NAFTAYes
