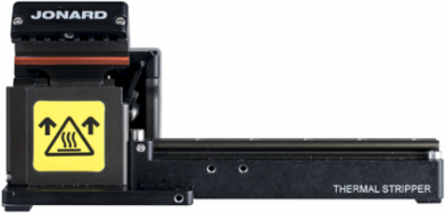

Jonard Tools TSFB-125 Jonard Tools TSFB-125 Thermal Stripper Fixed Blade
- MPN: TSFB-125
- UPC: 811490011236
- PPN: JTL-TSFB-125
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Designed to thermomechanically remove coatings from optical fibers with cladding, this thermal stripper is perfect for stripping extremely difficult or baked-on coatings with ease. This thermal stripper also features the following: Compatible with Fitel, Fujikura, and Ericsson fiber holder platforms, and a Universal Clamp for LDF or any other type of fiber (each sold separately) Includes: Fixed Thermal Stripper, Power Supply, Power Cord, Cleaning Brush
Features
- Heater is adjustable up to 200°C, far hotter than any competing product
- Has the ability to remove some fluoroacrylate undercoatings using high temperature
- Adjustable temperature and time settings allow it to adapt to a wide range of acrylate coatings and cladding sizes
- Supports optical fibers with cladding diameter of 125 µm, with buffer diameters from 250 µm to 900 µm, including 250 µm, 400 µm, and 900 µm coated fibers
- Compact and low-maintenance benchtop design makes this easy and convenient to use
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Blade Type
- Fixed
- Supported Fiber Buffers
- 250 µm-900 µm
- Supported Fiber Types
- 125 µm cladding
- Weight
- 2.888 Lbs.
- External Power Supply
- 100-240 VAC, 47-63 Hz
Length5 Inch
Width5 Inch
Height6 Inch
Adjustable Temperature Range60°C-200°C, or ambient
Adjustable Heat Time Range0-30 seconds (2 second increments)
