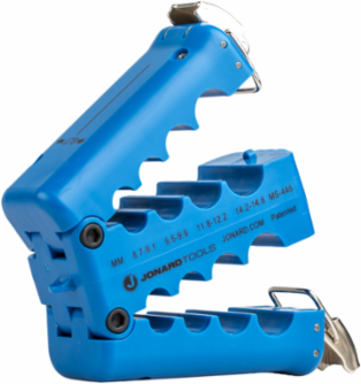

Jonard Tools MS-446 Jonard Tools MS-446 Mid Span Slit & Ring Tool (9.1 mm-14.6mm)
- MPN: MS-446
- UPC: 810053350775
- PPN: JTL-MS-446
CAD
$321.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Groove Sizes: 8.7-9.1 mm | 9.5-9.9 mm | 11.8-12.2 mm | 14.2-14.6 mm
Features
- Consists of 4 precision slitting grooves and 4 precision ring grooves ranging in size from 8.7 mm to 14.6 mm in diameter
- One side of the tool performs radial/ring cuts and the other side slits the cable (longitudinal cut)
- Compact design weighing less than 8 oz with included tethering hole makes it perfect to use in tight spaces or on the go
- Indicator line on top of the unit indicates the position of the blade for accurate slitting and ringing
- This tool was specially designed for AFL's Heavy Duty OSP MicroCore® (LMHD-Series) cables and other similar style cables
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Taiwan, Province of China |
|---|---|
| Cut Type | Slit, Ring |
| Number of Slitting Grooves | 4 |
| Number of Ringing Grooves | 4 |
| Weight | 0.54 Lbs. |
| Length | 8.27 Inch |
|---|---|
| Width | 4.72 Inch |
| Height | 1.97 Inch |
| Cable Type | Heavy Duty OSP MicroCore® (LMHD-Series) |
| Cable Diameter | 8.7 mm - 14.6 mm |
