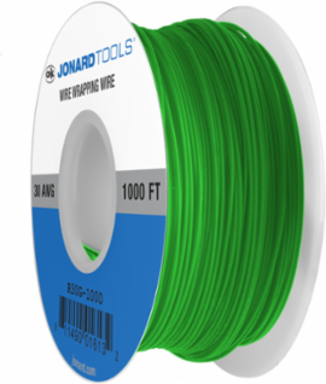

Jonard Tools R30G-1000 Wire 30 Awg Green 1000 Ft
Jonard Tools R30G-1000 Wire 30 Awg Green 1000 Ft
Jonard Tools R30G-1000 Wire 30 Awg Green 1000 Ft
Jonard Tools

Jonard Tools R30G-1000 Jonard Tools R30G-1000 Wire 30 Awg Green 1000 Ft

  • MPN: R30G-1000
  • UPC: 811490016132
  • PPN: JTL-R30G-1000

CAD

$147.32

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

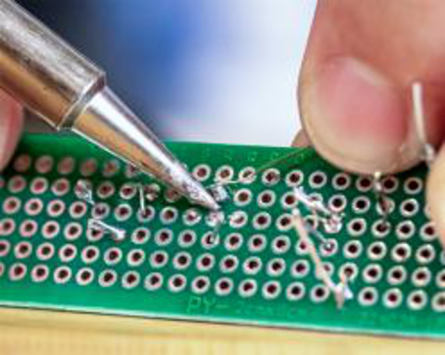

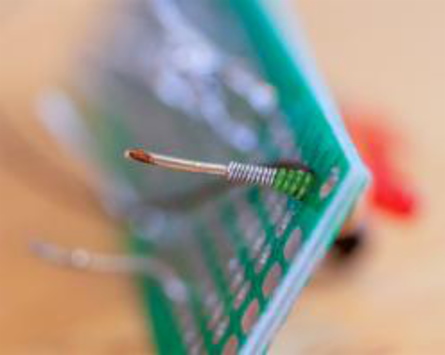

Typically used where flexibility, strength, and low weight is required, Kynar® wire is ideally suited in wire wrap, power supply, medical, and aerospace applications. It is also commonly used for circuit board prototyping because of its lighter weight and smaller overall diameter. Additionally, Kynar insulation provides excellent mechanical properties over a large temperature range and is resistant to an extensive range of chemicals including most inorganic and organic acids, bases, alcohols, halogenated solvents, and aliphatic & aromatic hydrocarbons. These properties make Kynar® wire an excellent choice when working in even the harshest environmental applications. This wire also features the following:

Features

  • OHFC (oxygen-free high conductivity) silver-plated copper conductor provides exceptional electrical conductivity and flexibility
  • Kynar® insulation provides high temperature resistance (up to 105°C) and excellent abrasion resistance
  • Meets or exceeds UL 1423 standards

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
United States
Length
2.25 Inch
Wire Gauge
30 AWG (0.25 mm)
Insulation Type
Kynar®
Weight
0.526 Lbs.
Material
Silver Plated Copper Conductor
Voltage
Not Rated
Product Main Color
Green
ColorGreen
Width2.8 Inch
Height2.8 Inch
Insulation Thickness0.005" (0.127 mm)
Overall Diameter0.020" (0.50 mm)
StandardsUL 1423
Product MaterialSilver Plated Copper Conductor
