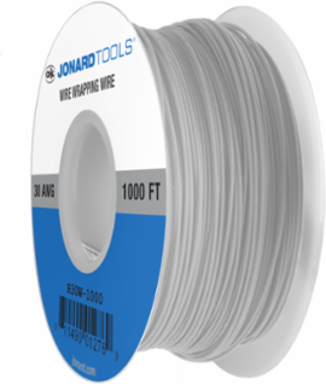

Jonard Tools R30W-1000 Jonard Tools R30W-1000 Wire 30 Awg White 1000 Ft
Jonard Tools R30W-1000 Jonard Tools R30W-1000 Wire 30 Awg White 1000 Ft
- MPN: R30W-1000
- UPC: 811490012769
- PPN: JTL-R30W-1000
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$147.32/ EA
Description

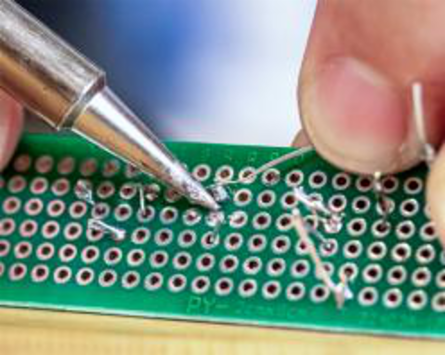

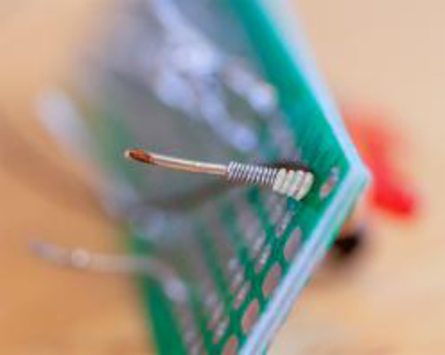

Typically used where flexibility, strength, and low weight is required, Kynar® wire is ideally suited in wire wrap, power supply, medical, and aerospace applications. It is also commonly used for circuit board prototyping because of its lighter weight and smaller overall diameter. Additionally, Kynar insulation provides excellent mechanical properties over a large temperature range and is resistant to an extensive range of chemicals including most inorganic and organic acids, bases, alcohols, halogenated solvents, and aliphatic & aromatic hydrocarbons. These properties make Kynar® wire an excellent choice when working in even the harshest environmental applications. This wire also features the following:
Features
- OHFC (oxygen-free high conductivity) silver-plated copper conductor provides exceptional electrical conductivity and flexibility
- Kynar® insulation provides high temperature resistance (up to 105°C) and excellent abrasion resistance
- Meets or exceeds UL 1423 standards
Specifications
Specifications
- Country of Origin
- United States
- Length
- 2.25 Inch
- Wire Gauge
- 30 AWG (0.25 mm)
- Height
- 2.8 Inch
- Weight
- 0.551 Lbs.
- Material
- Silver Plated Copper Conductor
- Voltage
- Not Rated
- Product Main Color
- White
ColorWhite
Width2.8 Inch
Insulation TypeKynar®
Insulation Thickness0.005" (0.127 mm)
Overall Diameter0.020" (0.50 mm)
StandardsUL 1423
Product MaterialSilver Plated Copper Conductor
