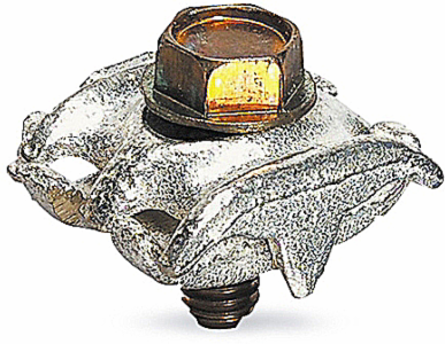

Parallel-Groove Jumper Clamp, Copper Alloy for ACSR #6 - 1/0, 35kV, 14.69 lbs/100

Documentation & Downloads

Blackburn K2 Parallel-Groove Jumper Clamp, Copper Alloy for ACSR #6 - 1/0, 35kV, 14.69 lbs/100

MPN: K2
UPC: 783786300358
PPN: T-B-K2

CAD

$24.98

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

Copper Type K - Jumper Clamp for Wire Range ACSR #6 - 1/0, Clamp Tin-Plated

Documentation & Downloads

Specifications

North American Specifications (UNSPSC)

UNSPSC: 39121408 Mechanical connectors

Brand Name: Blackburn

Special Features: Silicon-Bronze Hex-Head Washer Bolt Ensures a Super-Secure Fitting. Parallel-Groove Design Eliminates the Need to Remove the Bolt for Installation.

Number Of Conductors: 2

Finish: Tin-Plated

Insulation: No

IGCC4541 Mechanical connectors

TypeParallel-Groove Connector - Jumper Clamp

ApplicationFor use with Amerductor, Aluminum or Galvanized Steel Stranding.

MaterialCopper Alloy

Voltage Rating35kV

Conductor Range (Main/Primary)ACSR #6 - 1/0

Packaging

Inner Quantity: 1

Outer Dimensions (inches): 8.25x7.25x6.5

Outer Quantity100

Weight Uom14.69 lbs. per 100
