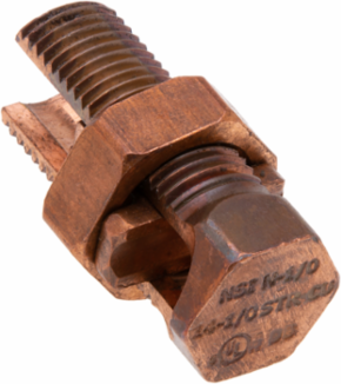

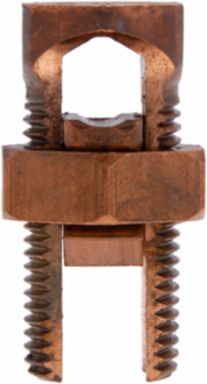

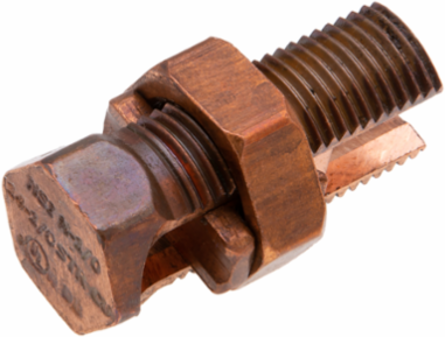

NSI Industries N-1/0 Copper Split Bolt 1/0
- MPN: N-1/0
- PPN: NSI-N-1/0
- UNSPSC: 39121408
CAD
$11.74
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Copper Split Bolt Connector 1/0 AWG Copper Split Bolt Connectors are high-strength solderless service connectors made of high-copper alloy for copper and copperweld wires. Type for two maximum wire sizes.
Features
- High strength solderless service connector made of high-copper alloy for copper and copperweld wires
- Type for two maximum wire sizes
Specifications
Key Specifications
| Country of Origin | India |
|---|---|
| NPD Date Electrical | 2010-04-01T00:00:00.000Z |
| WARRANTY | 1 Year |
| Field Application | Splice, Tap |
| PRODUCT FAMILY | Connectivity |
| Product Series | N |
| Conductor Type | Copper |
| Maximum Conductor Copperweld - Type A | 2A |
| Maximum Conductor Copperweld - STR | 3 NO. 6 |
| Collection Folder | N-1/0 |
|---|---|
| MATERIAL | Copper |
| Division | Electrical H1 |
| Sub-Division | Electrical-E H2 |
| Product Assortment | Copper Split Bolts |
| Future Plan | Rebrand as Polaris |
| Wire Diameter Range | 0.204 - 0.375 IN |
| Copper Conductor Min. Tap with one Max. Main | 14 SOL |
| Wire Range of Equal Main and Tap (CU & AL) | 4 SOL - 1/0 STR |
