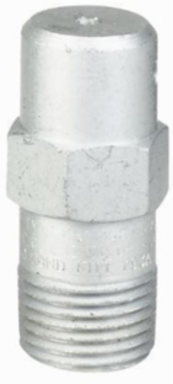

Killark KB1DCEN Aluminum ATEX & IECEx Certified Drain 1/2 Inch NPT Thread Size
- MPN: KB1DCEN
- UPC: 783936012643
- PPN: HBL-KB1DCEN
- UNSPSC: 39121321
CAD
$328.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The KB & KDB drain and breather are installed either the bottom top of an enclosure. When installed in the bottom they act as a gravity fed drain to expel moisture from condensation that can build up in electrical enclosures When installed in the top of an enclosure it acts a s a breather allowing air to enter and prevent a vacuum which can cause the drain not to flow properly. They are UL / cCSAus / FM certified for Class I Class I Zone 1 & 2 Class III, Type 4 & 4X. Also, ATEX, IEC Ex, Ex db IP66 with suffix “CEN”. Review each part for hazardous rating suitability and notified body. The KB & KDB are offered in aluminum, 300 series stainless steel and 316 stainless steel. Thread sizes ¼”to 1/2” NPT and Metric sizes M16 & M20.
Features
- Suitable for Explosionproof and Dust-Ignitionproof environments.
- Copper-free aluminum.
- Light Blue Anodized Finish.
- The drain has a 1/2" NPT thread size.
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Hub Size
- 1/2"
- Application
- When installed in the bottom of an enclosure, these fittings permit water from condensation to drain from the enclosure continuously.
- Size
- 2 in x 1 in x 1 in
- Type
- Drain
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 1/2"NPT DRAIN GRP A ATEX IEC EX
- Harmonization Code
- 7616995190
- Lead Time
- 30 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D237
- Gross Weight with Packaging
- 0.25
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936012643
- Master Pack Description
- Each
Dimensions2 in x 1 in x 1 in
Height1 in
Length2 in
ColorSilver
Special FeaturesThe drain has a 1/2" NPT thread size.
Width1 in
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorNo
CSA File NumberLR11716
UL File NumberE10514
SeriesKB Series
BOX SIZE(in)
Item Package TypeK-PAK
NAICS Code3359326103
Certifications
- EU RoHS Indicator
- Contact Manufacturer
