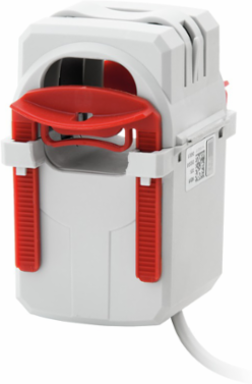

Weidmuller 2420710000 KCMA-44-750-5A-5VA-1
- MPN: 2420710000
- PPN: WDM-2420710000
CAD
$376.36
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Primary current: 750 A, Secondary current max.: 5 A, Load: 5 VA, Tolerance class: 1
Documentation & Downloads
Specifications
Dimensions Of Live Conductors
| Round conductor | 44 mm |
|---|
Electrical Attributes
| Load | 5 VA |
|---|---|
| Secondary current max. | 5 A |
| Primary current | 750 A |
|---|---|
| Tolerance class | 1 |
Approvals
| ROHS | Conform |
|---|

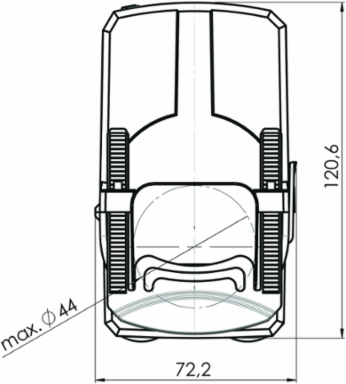

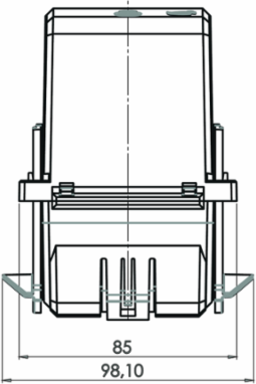

Dimensions And Weights
| Width | 72.2 mm |
|---|---|
| Height | 120.6 mm |
| Depth | 98 mm |
| Net weight | 1 g |
| Width (inches) | 2.843 inch |
|---|---|
| Height (inches) | 4.748 inch |
| Depth (inches) | 3.858 inch |
Classifications
| ETIM 6.0 | EC002048 |
|---|---|
| eClass 9.0 | 27-21-09-02 |
| eClass 10.0 | 27-21-09-02 |
| ETIM 7.0 | EC002048 |
|---|---|
| eClass 9.1 | 27-21-09-02 |
Technical Data
| Insulation class | E |
|---|---|
| Operating voltage U | 0,72 kV |
| Nominal frequency | 50 Hz |
|---|---|
| Thermal rated continuous current I | 1.2 x Irated |
Temperatures
| Operating temperature, max. | 50 °C |
|---|---|
| Storage temperature, max. | 70 °C |
| Operating temperature | -5 °C...50 °C |
| Operating temperature, min. | -5 °C |
|---|---|
| Storage temperature, min. | -25 °C |
| Storage temperature | -25 °C...70 °C |
