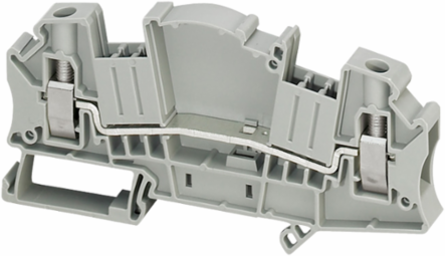

Schneider Electric NSYTRV62TT Linergy TR Feed Through Measuring Transducer 2 Points 6mm2
- MPN: NSYTRV62TT
- PPN: SCH-NSYTRV62TT
CAD
$30.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Linergy TR Feed Through Measuring Transducer from Schneider Electric is an essential component for those working in automation and control systems. Designed with two measurement points and accommodating conductor sizes of up to 6mm2, this transducer provides reliable and accurate data transmission, ensuring seamless integration into various applications. Its robust design not only enhances functionality but also simplifies installations within terminal blocks, making it an ideal choice for professionals seeking efficiency and precision in their electrical setups.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, Poland, United States |
|---|
Physical Attributes
| Color | Gray |
|---|
| Wire Stripping Length | 10 mm |
|---|
Complementary Attributes
| Line Rated Current | 30-30 A EN/IEC 60947-7-1, 30-30 A UL, 30-30 A CSA |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Cable Cross Section | 0.2-10 mm², solid0.2-10 mm², flexible without cable end, 0.2-6 mm², flexible with cable end |
| Dielectric Loss | 0.01 at 1 MHz IEC 60250, 0.01 at 1 MHz VDE 0303-T4 |
| Resistivity | 10000 MΩ.m IEC 60093, 10000 MΩ.m VDE 0303-T30 |
| Tool Type | connection screwdriver, disconnection screwdriver |
| [Ue] Rated Operational Voltage | 500 V EN/IEC 60947-7-1600 V UL, 600 V CSA |
| Carbon Footprint Of The Distribution Phase [A4] | 0.00332335, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.002077047, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 8 kg CO2 eq., 7.619606494 |
| Local Publishable Date | 2026-06-27 |
| Stocking Flag | Y |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Compatibility Code | terminal block |
| Device Short Name | TRV |
| Dielectric Strength | 1000 V IEC 60243-1 |
| Flame Retardance | V0 0.8 mm UL 94 |
| Nominal Cross Section | 6 mm² |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | terminal block |
| Range | Linergy |
| Returnability | No |
| Sustainable Packaging | Yes |
| Terminal Block Type | passthrough |
| Total Lifecycle Carbon Footprint | 8 kg CO2 eq. |
| Pep Code | ENVPEP2309018EN |
| Pep Verification Date | 2023-12-03 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Height Nominal | 49.6 mm |
| Width Nominal | 8.2 mm |
| Halogen-free Status | Halogen free plastic parts product |
| Package Weight(Lbs) | 24.000 g |
| Take-back | No |
| Customs Code | 8536904000 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Creep Resistance | 500 CTI (> 400 kB) IEC 60093, 500 CTI (> 400 kB) VDE 0303-T30 |
| Material | polyamide 6/6: insulating casecopper alloy: connector and screw, copper alloy: commoning linkchromium-nickel steel: spring |
| Surface Resistance | 1000 GΩ IEC 60093, 1000 GΩ VDE 0303-T30 |
| Certificate Agency | CSA, UL |
| Connections - Terminals | 1 x screw terminal upstream M4), 1 x screw terminal downstream M4) |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.070103181 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.2 kg CO2 eq., 0.153975239 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2518 |
| China Rohs In Scope | No |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Connection Position | inclined |
| Dielectric Constant | 3.7 at 1 MHz |
| Energy Efficiency Optimized | False |
| Mounting Mode | clip-on |
| Number Of Terminals | 2 |
| Product Name | Linergy TR |
| Quantity Per Set | set of 50 |
| Range Of Product | Linergy |
| Software Version | v5.9.4 |
| Terminal Block Level | 1 |
| Tightening Torque | 1.5-1.8 N.m |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Connect during 20 years 2 clamping units between 2 or more wires with a rated connecting capacity 21 A, a rated cross-section 2.5 mm², a rated voltage 690 V. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; GE |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Recyclability Potential In % | 46 |
| Length Total | 100.8 mm |
| Accessory / Separate Part Category | connection accessory |
| Nbr. Of Units In Pkg. | 1 |
| Silicone-free | Yes |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Silicon Free | Yes |
| Environmental Disclosure | ENVPEP2309018EN |
| Halogen Content Performance | Halogen free plastic parts product |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-12-03 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Ambient Air Temperature For Operation | -40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21, -40-130 °C VDE 0304-T21-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21 |
|---|---|
| Halogene Performance | Halogen free plastic parts product |
| Mercury Free | Yes |
| Carbon Footprint | 7.849085311 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Product Compatibility | Spacial enclosures |
| Pep Code | ENVPEP2309018EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | terminal block |
|---|
| Range Of Product | Linergy |
|---|
ETIM
| ETIM 8 | EC000897 |
|---|
| ETIM 9 | EC000897 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Number Of Measurement Input | 6 |
|---|
