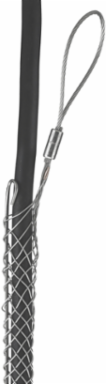

Hubbell Wiring Device-Kellems 03310005 Slack Pulling Grip, Offset Eye, 1.25-1.49 Inch, Galvanized Steel
- MPN: 03310005
- UPC: 783585316703
- PPN: HBL-03310005
- UNSPSC: 39121722
CAD
$215.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Kellems Wire Management, Slack Pulling Grips, Rod Closing, Offset Eye, 1.25-1.49"
Features
- Single offset eye for easy attachement to pulling line
- Rod closing for split lace closure
- Single weave galvanized steel mesh
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Cable Diameter Range | 1.25 in-1.49 in |
| Industry Standard(s) | CSA Certified |
| Standards - RoHS Compliance Status | CM |
| Cable Size | 1.25"-1.49" (3.17-3.78) |
| Special Features | Standard Product |
| Type | Offset Eye |
| General Literature Asset 1 Display Text | Pulp & Paper Solutions |
| General Literature Asset 3 Display Text | FOOD & BEVERAGE SOLUTIONS |
| Load Capacity | 900 |
| Class Code | A52 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | 08642943 |
| Material - Mounting Hardware | Non-Mounted |
| Material | Steel, Galvanized |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585316703 |
| Lowest Level UOM | Each |
| Approx Breaking Strength | 4,500 lb. |
|---|---|
| Width | 2.800 in |
| Performance | Mechanical - Approximate Breaking Strength - 4,500 (20,016) Lbs. (N);Mechanical - Working Load - 900 (4003.2) Lbs. (N) |
| Application | General Cable Pulling |
| Load | 900 |
| Standard | CSA Certified |
| Weight | 0.5 lb. |
| General Literature Asset 2 Display Text | PULP & PAPER SOLUTIONS |
| Cable Specification | UL Listed Circuit Wire |
| Style | Split Mesh, Rod Closing, Single Weave |
| Description - Invoice | SLACK PULL GRIP SGL EYE, 1.2-1.5" ROD |
| Harmonization Code | 7326200090 |
| MSDS Flag | No |
| Sub Class Code | A52A480 |
| Construction | Woven |
| Series | Slack Grip Series |
| BOX SIZE | (in) |
| Each - Pack Description | Each |
| NAICS Code | 3359323114 |
