Hubbell Wiring Device-Kellems 03310010 Kellems Slack Pulling Grip, Offset Eye, 3.00-3.49 Inch, 2400 lb Load Capacity
- MPN: 03310010
- UPC: 783585316758
- PPN: HBL-03310010
- UNSPSC: 39121722
CAD
$365.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

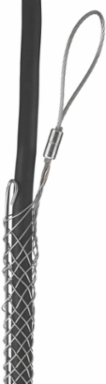

Kellems Wire Management, Slack Pulling Grips, Rod Closing, Offset Eye, 3.00-3.49"
Features
- Single offset eye for easy attachement to pulling line
- Rod closing for split lace closure
- Single weave galvanized steel mesh
- Lug:Aluminium, Tab: Copper, Rod: Stainless Steel, Tag: Mylar
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Cable Diameter Range | 3.00 in-3.49 in |
| Industry Standard(s) | CSA Certified |
| Standards - RoHS Compliance Status | CM |
| Cable Size | 3.00"-3.49" (7.62-8.86) |
| Special Features | Lug:Aluminium, Tab: Copper, Rod: Stainless Steel, Tag: Mylar |
| Type | Offset Eye |
| General Literature Asset 1 Display Text | Pulp & Paper Solutions |
| General Literature Asset 3 Display Text | FOOD & BEVERAGE SOLUTIONS |
| Load Capacity | 2400 |
| Class Code | A52 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | 08642961 |
| Material - Mounting Hardware | Non-Mounted |
| Material | Steel, Galvanized |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 3.800 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 2 |
| Each - Pack Description | Each |
| NAICS Code | 3359323114 |
| Approx Breaking Strength | 12,000 lb. |
|---|---|
| Width | 12.000 in |
| Performance | Mechanical - Approximate Breaking Strength - 12,000 (53,376) Lbs. (N);Mechanical - Working Load - 2400 (10675.2) Lbs. (N) |
| Application | General Cable Pulling |
| Load | 2400 |
| Standard | CSA Certified |
| Weight | 1.9 lb. |
| General Literature Asset 2 Display Text | PULP & PAPER SOLUTIONS |
| Cable Specification | UL Listed Circuit Wire |
| Style | Split Mesh, Rod Closing, Single Weave |
| Description - Invoice | SLACK PULL GRIP SGL EYE, 3.0-3.5" ROD |
| Harmonization Code | 7326200090 |
| MSDS Flag | No |
| Sub Class Code | A52A480 |
| Construction | Woven |
| Series | Slack Grip Series |
| BOX SIZE | 3.000x37.750x11.000 (in) |
| Carton - Number of Sub Packs | 2 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585316758 |
| Case Weight | 22.200 lb. |
| Lowest Level UOM | Each |
