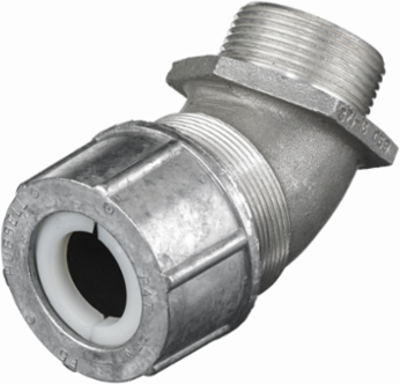

Hubbell Wiring Device-Kellems VHC1052 45 Degree Male Cord Connector, 1.00-1.13 Inch, Aluminum, NEMA Type 4
- MPN: VHC1052
- UPC: 783585202525
- PPN: HBL-VHC1052
- UNSPSC: 39121431
CAD
$152.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Kellems Wire Management, Cord Connectors, 45 Degree Male, 1.00-1.13", 1 1/4", Aluminum
Features
- Cast aluminum cord connector, one-piece design with machined threads
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Hub Size
- 1-1/4"
- Performance
- Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC.;Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
- Conductor Range
- 1-1.13 in (25.4- 28.6 mm)
- NEMA Rating
- NEMA Type 4, 4X, 12 and 13
- Special Features
- Standard Product
- Temperature Rating
- Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
- General Literature Asset 1 Display Text
- Pulp & Paper Solutions
- General Literature Asset 3 Display Text
- FOOD & BEVERAGE SOLUTIONS
- Nema Rating
- NEMA Type 4, 4X, 12 and 13
- Class Code
- A52
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A52A490
- Cord Diameter
- 1.00-1.13 in
- Series
- Standard Duty Series
- BOX SIZE
- 6.400x2.100x10.400 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585202525
- Each - Pack Description
- Each
- NAICS Code
- 3359323114
Width4.500 in
Industry Standard(s)UL Listed
Application45 Degree Male- Form 5
Environmental ConditionsSuitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Number of ConductorsSingle
StandardUL Listed
Type45 Degree Male
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
Display Size1 1/4" NPT
Number Of ConductorsSingle
Description - InvoiceCORDCON, 45 ML, 1.0-1.13"; 1 1/4"; ALU
Harmonization Code7616995190
MSDS FlagNo
Material - Mounting HardwareLocknut or Tapped Opening
MaterialAluminum, Cast
Base Unit of MeasureEA
Carton - Gross Weight per Pack5.7 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
