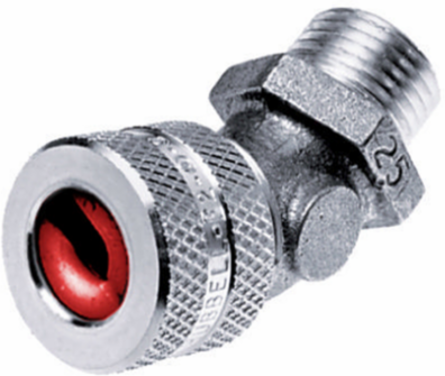

Hubbell Wiring Device-Kellems VHC1021 Aluminum Cord Connector 45 Degree Male, 1/2 Inch, 0.19-0.25 Inch
- MPN: VHC1021
- UPC: 783585202211
- PPN: HBL-VHC1021
- UNSPSC: 39121431
CAD
$79.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Kellems Wire Management, Cord Connectors, 45 Degree Male, .19-.25", 1/2", Aluminum
Features
- Machined aluminum cord connector, one-piece design with machined threads
- Lock nuts sold separately
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Hub Size
- 1/2 "
- Performance
- Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC.;Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
- Conductor Range
- 0.19-0.25 in (4.7- 6.3 mm)
- NEMA Rating
- NEMA Type 4, 4X, 12 and 13
- Special Features
- Standard Product
- Temperature Rating
- Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
- General Literature Asset 1 Display Text
- Pulp & Paper Solutions
- General Literature Asset 3 Display Text
- FOOD & BEVERAGE SOLUTIONS
- Nema Rating
- NEMA Type 4, 4X, 12 and 13
- Class Code
- A52
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A52A490
- Color Code
- Red
- Material
- Aluminum
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.500 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25 EA
- Case Weight
- 22.500 lb.
- Lowest Level UOM
- Each
Width0.800 in
Industry Standard(s)UL Listed
Application45 Degree Male- Form 2
Environmental ConditionsSuitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Number of ConductorsSingle
StandardUL Listed
Type45 Degree Male
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
Display Size1/2" NPT
Number Of ConductorsSingle
Description - InvoiceCORDCON, 45 ML, .19-.25"; 1/2"; ALU
Harmonization Code7616995190
MSDS FlagNo
Material - Mounting HardwareLocknut or Tapped Opening
Cord Diameter0.19-0.25 in
SeriesStandard Duty Series
BOX SIZE4.750x7.880x5.500 (in)
Carton - Number of Sub Packs25
Carton - SCC-14 Next Lower Level Sub Pack783585202211
Case - Total Units225 EA
Each - Pack DescriptionEach
NAICS Code3359323114
Certifications
- EU RoHS Indicator
- Yes
