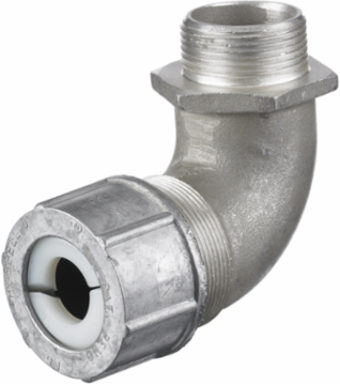

Hubbell Wiring Device-Kellems NHC1057 Kellems 90° Male Cord Connector 1-1/2 Inch, Cord Diameter 1.00-1.13 Inch, Cast Aluminum
- MPN: NHC1057
- UPC: 783585201573
- PPN: HBL-NHC1057
- UNSPSC: 39121431
CAD
$183.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Kellems Wire Management, Cord Connectors, 90 Degree Male 1.00-1.13", 1 1/2", Aluminum
Features
- Cast aluminum cord connector, one-piece design with machined threads
- Lock nuts sold separately
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Hub Size
- 1-1/2"
- Performance
- Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC.;Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
- Color
- Metallic
- Environmental Conditions
- Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
- Number of Conductors
- Single
- Standard
- UL Listed
- Type
- 90° Male
- General Literature Asset 2 Display Text
- PULP & PAPER SOLUTIONS
- Display Size
- 1 1/2" NPT
- Number Of Conductors
- Single
- Description - Invoice
- 90 MALE CORD CONN, 1.00-1.13";1 1/2";ALU
- Harmonization Code
- 7616995190
- MSDS Flag
- No
- Sub Class Code
- A52A490
- Cord Diameter
- 1.00-1.13 in
- Series
- Standard Duty Series
- BOX SIZE
- 6.700x10.100x8.400 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585201573
- Case Weight
- 6.750 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 46.900 in
- Pallet Weight
- 1039.500 lb.
- NAICS Code
- 3359323114
Width3.750 in
Industry Standard(s)UL Listed
Application90 Degree Male- Form 5
Conductor Range1-1.13 in (25.4- 28.6 mm)
NEMA RatingNEMA Type 4, 4X, 12 and 13
Special FeaturesStandard Product
Temperature RatingMinimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
General Literature Asset 1 Display TextPulp & Paper Solutions
General Literature Asset 3 Display TextFOOD & BEVERAGE SOLUTIONS
Nema RatingNEMA Type 4, 4X, 12 and 13
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberZN513
Material - Mounting HardwareLocknut or Tapped Opening
MaterialCast Aluminum
Base Unit of MeasureEA
Carton - Gross Weight per Pack6.95 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585201572
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
