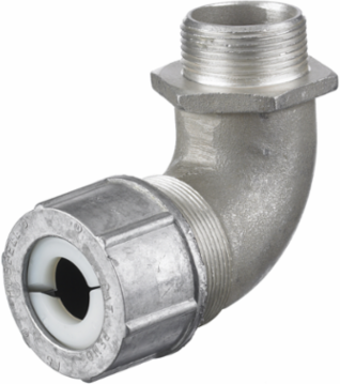

Hubbell Wiring Device-Kellems NHC1054 Aluminum 90 Degree Male Cord Connector, 1-1/4 Inch, 1.25-1.38 Inch
- MPN: NHC1054
- UPC: 783585201542
- PPN: HBL-NHC1054
- UNSPSC: 39121431
CAD
$143.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Kellems Wire Management, Cord Connectors, 90 Degree Male 1.25-1.38", 1 1/4", Aluminum
Features
- Cast aluminum cord connector, one-piece design with machined threads
- Lock nuts sold separately
- UL514B Tray cable rated for dry locations
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Hub Size
- 1-1/4"
- Performance
- Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC.;Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
- Conductor Range
- 1.25-1.38 in (31.7- 34.9 mm)
- NEMA Rating
- NEMA Type 4, 4X, 12 and 13
- Special Features
- Standard Product
- Temperature Rating
- Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
- General Literature Asset 1 Display Text
- Tray Cable Cord Connectors FAQ
- General Literature Asset 3 Display Text
- PULP & PAPER SOLUTIONS
- Nema Rating
- NEMA Type 4, 4X, 12 and 13
- Class Code
- A52
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A52A490
- Cord Diameter
- 1.25-1.38 in
- Series
- Standard Duty Series
- BOX SIZE
- 6.800x10.100x8.500 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585201542
- Case Weight
- 6.600 lb.
- Lowest Level UOM
- Each
Width2.700 in
Industry Standard(s)UL Listed
Application90 Degree Male- Form 5
Environmental ConditionsSuitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Number of ConductorsSingle
StandardUL Listed
Type90° Male
General Literature Asset 2 Display TextPulp & Paper Solutions
Display Size1 1/4" NPT
Number Of ConductorsSingle
Description - Invoice90 MALE CORD CONN, 1.25-1.38";1 1/4";ALU
Harmonization Code7616995190
MSDS FlagNo
Material - Mounting HardwareLocknut or Tapped Opening
MaterialAluminum, Cast
Base Unit of MeasureEA
Carton - Gross Weight per Pack6.75 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
NAICS Code3359323114
Certifications
- EU RoHS Indicator
- Yes
