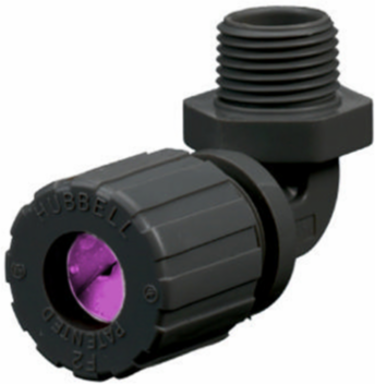

Hubbell Wiring Device-Kellems NHC2042CR 90 Degree Male Cord Connector 0.75-0.88 Inch Nylon, NEMA Type 4
- MPN: NHC2042CR
- UPC: 783585451923
- PPN: HBL-NHC2042CR
- UNSPSC: 39121431
CAD
$58.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Kellems Wire Management, Cord Connectors, 90 Degree Male .75-.88", 1", Nylon
Features
- Nylon cord connector resists corrosion
- Connector body is a one-piece design with machined threads
- Tapered interior seats the bushing evenly for a liquidtight seal
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Hub Size
- 1"
- Performance
- Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC.;Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
- Color
- Black
- Environmental Conditions
- Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
- Number of Conductors
- Single
- Standard
- UL Listed
- Type
- 90° Male
- General Literature Asset 2 Display Text
- Pulp & Paper Solutions
- Display Size
- 1" NPT
- Number Of Conductors
- Single
- Description - Invoice
- 90 MALE CORD CONN, .75-.88"; 1"; NYL, BK
- Harmonization Code
- 3926909989
- MSDS Flag
- No
- Material - Mounting Hardware
- Locknut or Tapped Opening
- Cord Diameter
- 0.75-0.88 in
- Series
- Standard Duty Series
- BOX SIZE
- 4.750x7.880x5.500 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585451923
- Case - Total Units
- 90 EA
- Each - Pack Description
- Each
- NAICS Code
- 3359323114
Width1.800 in
Industry Standard(s)UL Listed
Application90 Degree Male- Form 4
Conductor Range0.75-0.88 in (19.0-22.2 mm)
NEMA RatingNEMA Type 4, 4X, 12 and 13
Special FeaturesStandard Product
Temperature RatingMinimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
General Literature Asset 1 Display TextTray Cable Cord Connectors FAQ
General Literature Asset 3 Display TextPULP & PAPER SOLUTIONS
Nema RatingNEMA Type 4, 4X, 12 and 13
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A490
Color CodeOrchid
MaterialNylon
Base Unit of MeasureEA
Carton - Gross Weight per Pack2 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight108.000 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
