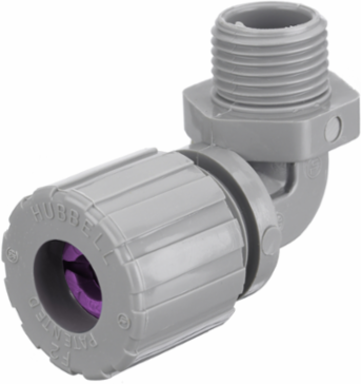

Hubbell Wiring Device-Kellems NHC1042CR Nylon 90 Degree Male Cord Connector, 0.75-0.88 Inch, 1 Inch
- MPN: NHC1042CR
- UPC: 783585208848
- PPN: HBL-NHC1042CR
- UNSPSC: 39121431
CAD
$77.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Kellems Wire Management, Cord Connectors, 90 Degree Male .75-.88", 1", Nylon
Features
- Nylon cord connector resists corrosion
- Connector body is a one-piece design with machined threads
- Tapered interior seats the bushing evenly for a liquidtight seal
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Hub Size
- 1"
- Performance
- Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC.;Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
- Application
- 90 Degree Male- Form 4
- Conductor Range
- 0.75- 0.88 in (19.0- 22.2 mm)
- NEMA Rating
- NEMA Type 4, 4X, 12 and 13
- Special Features
- Standard Product
- Temperature Rating
- Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
- General Literature Asset 1 Display Text
- Tray Cable Cord Connectors FAQ
- General Literature Asset 3 Display Text
- PULP & PAPER SOLUTIONS
- Nema Rating
- NEMA Type 4, 4X, 12 and 13
- Class Code
- A52
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A52A490
- Color Code
- Orchid
- Material
- Nylon
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 20.350 lb.
- Lowest Level UOM
- Each
Width2.730 in
Industry Standard(s)UL Listed
Standards - RoHS Compliance StatusCM
ColorGray
Environmental ConditionsSuitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Number of ConductorsSingle
StandardUL Listed
Type90° Male
General Literature Asset 2 Display TextPulp & Paper Solutions
Display Size1" NPT
Number Of ConductorsSingle
Description - Invoice90 MALE CORD CONN, .75-.88"; 1"; NYL, GY
Harmonization Code3926909989
MSDS FlagNo
Material - Mounting HardwareLocknut or Tapped Opening
Cord Diameter0.75-0.88 in
SeriesStandard Duty Series
BOX SIZE5.200x8.400x5.500 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585208848
Case - Total Units90 EA
Each - Pack DescriptionEach
NAICS Code3359323114
Certifications
- EU RoHS Indicator
- Yes
