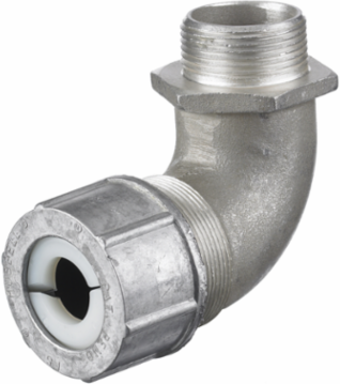

Hubbell Wiring Device-Kellems NHC1051 90 Degree Male Cord Connector, 0.88-1 Inch, 1-1/4 Inch, Aluminum
- MPN: NHC1051
- UPC: 783585201511
- PPN: HBL-NHC1051
- UNSPSC: 39121431
CAD
$143.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Kellems Wire Management, Cord Connectors, 90 Degree Male .88-1.00", 1 1/4", Aluminum
Features
- Cast aluminum cord connector, one-piece design with machined threads
- Lock nuts sold separately
- UL514B Tray cable rated for dry locations
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Hub Size
- 1-1/4"
- Performance
- Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC.;Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
- Conductor Range
- 0.88-1 in (22.2- 25.4 mm)
- NEMA Rating
- NEMA Type 4, 4X, 12 and 13
- Special Features
- Standard Product
- Temperature Rating
- Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
- General Literature Asset 1 Display Text
- Tray Cable Cord Connectors FAQ
- General Literature Asset 3 Display Text
- PULP & PAPER SOLUTIONS
- Nema Rating
- NEMA Type 4, 4X, 12 and 13
- Class Code
- A52
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- ZN412
- Material - Mounting Hardware
- Locknut or Tapped Opening
- Material
- Aluminum, Cast
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 7.25 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
- NAICS Code
- 3359323114
Width4.000 in
Industry Standard(s)UL Listed
Application90 Degree Male- Form 5
Environmental ConditionsSuitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Number of ConductorsSingle
StandardUL Listed
Type90° Male
General Literature Asset 2 Display TextPulp & Paper Solutions
Display Size1 1/4" NPT
Number Of ConductorsSingle
Description - Invoice90 MALE CORD CONN, .88-1.00"; 1 1/4";AL
Harmonization Code7616995190
MSDS FlagNo
Sub Class CodeA52A490
Cord Diameter0.88-1.00 in
SeriesStandard Duty Series
BOX SIZE6.800x10.300x8.500 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585201511
Case Weight7.050 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
