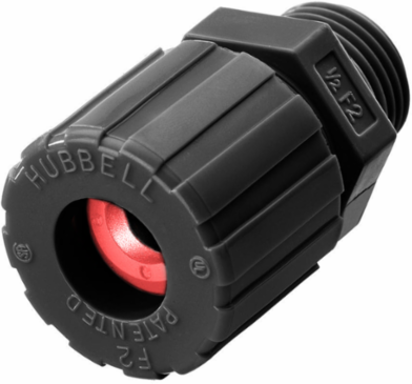

Hubbell Wiring Device-Kellems SHC2044CR Kellems Nylon Cord Connector, Straight Male, 1-1/8 Inch, NEMA Type 4, UL Listed
- MPN: SHC2044CR
- UPC: 783585451824
- PPN: HBL-SHC2044CR
- UNSPSC: 39121431
CAD
$30.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Kellems Wire Management, Cord Connectors, Straight Male, 1.00-1.13", 1", Nylon
Features
- Nylon cord connector resists most common industrial corrosives
- Provides effective pullout protection
- Lightweight design
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Hub Size
- 1"
- Performance
- Environmental - Flammability - UL 94-V2;Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC;Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
- Application
- Straight Male- Form 4
- Conductor Range
- 1-1.13 in (25.4-28.6 mm)
- NEMA Rating
- NEMA Type 4, 4X, 12 and 13
- Special Features
- Standard Product
- Temperature Rating
- Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
- Engineering Drawing 1 Display Text
- SHC2044CR AutoCAD Drawing
- General Literature Asset 2 Display Text
- Pulp & Paper Solutions
- Display Size
- 1" NPT
- Number Of Conductors
- Single
- Description - Invoice
- CORDCON, STR ML, 1.00-1.13"; 1"; NYL, BK
- Harmonization Code
- 3926909989
- MSDS Flag
- No
- Material - Mounting Hardware
- Locknut or Tapped Opening
- Cord Diameter
- 1.00-1.13 in
- Series
- Standard Duty Series
- BOX SIZE
- 4.800x8.400x5.400 (in)
- Carton - Number of Sub Packs
- 15
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585451824
- Case - Total Units
- 135 EA
- Each - Pack Description
- Each
- NAICS Code
- 3359323114
Width1.880 in
Industry Standard(s)UL Listed
Standards - RoHS Compliance StatusCM
ColorBlack
Environmental ConditionsSuitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Number of ConductorsSingle
StandardUL Listed
TypeStraight Male
General Literature Asset 1 Display TextTray Cable Cord Connectors FAQ
General Literature Asset 3 Display TextPULP & PAPER SOLUTIONS
Nema RatingNEMA Type 4, 4X, 12 and 13
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A490
Color CodePink
MaterialNylon
Base Unit of MeasureEA
Carton - Gross Weight per Pack2 lb.
Carton - Pack DescriptionCarton
Carton - Total Units15 EA
Case Weight20.200 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
