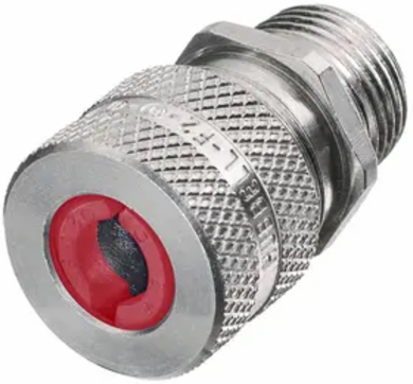

Hubbell Wiring Device-Kellems SHC1015 Aluminum Cord Connector, Straight Male, 0.19-0.25 Inch, 1/2 Inch
- MPN: SHC1015
- UPC: 783585200156
- PPN: HBL-SHC1015
- UNSPSC: 39121431
CAD
$20.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Kellems Wire Management, Cord Connectors, Straight Male, .19"-.25", 1/2", Aluminum
Features
- Aluminum cord connector provides durable performance
- Knurled finish makes them easy to handle and maintain UL listing by hand tightening
- Lightweight design
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- SHC1015 AutoCAD Drawing
- General Literature Asset 3 Display Text
- FOOD & BEVERAGE SOLUTIONS
- Width
- 1.000 in
- Industry Standard(s)
- UL Listed
- Standards - RoHS Compliance Status
- CM
- Conductor Range
- 0.19-0.25 in (4.7- 6.3 mm)
- NEMA Rating
- NEMA Type 4, 4X, 12 and 13
- Special Features
- Standard Product
- Temperature Rating
- Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
- General Literature Asset 1 Display Text
- Wire Management Solutions Brochure
- Nema Rating
- NEMA Type 4, 4X, 12 and 13
- Class Code
- A52
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A52A490
- Color Code
- Red
- Material
- Aluminum
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.85 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 50 EA
- Case Weight
- 8.077 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 44.500 in
- Pallet Weight
- 1467.000 lb.
- NAICS Code
- 3359323114
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
Country of OriginChina
Hub Size1/2 "
PerformanceEnvironmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC;Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
ApplicationStraight Male- Form 1
Environmental ConditionsSuitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Number of ConductorsSingle
StandardUL Listed
TypeStraight Male
Display Size1/2" NPT
Number Of ConductorsSingle
Description - InvoiceCORDCON, STR ML, .19-.25", 1/2", ALU
Harmonization Code7616999999
MSDS FlagNo
Material - Mounting HardwareLocknut or Tapped Opening
Cord Diameter0.19-0.25 in
SeriesStandard Duty Series
BOX SIZE4.400x6.300x5.500 (in)
Carton - Number of Sub Packs50
Carton - SCC-14 Next Lower Level Sub Pack783585200156
Case - Total Units400 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585200155
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
