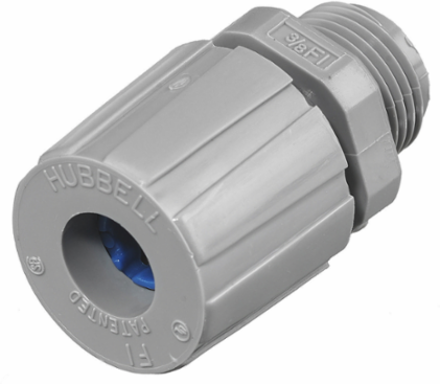

Hubbell Wiring Device-Kellems SHC1012CR Nylon Straight Male Cord Connector, 3/8 Inch, .38-.44 Inch Conductor Range
- MPN: SHC1012CR
- UPC: 783585207940
- PPN: HBL-SHC1012CR
- UNSPSC: 39121431
CAD
$22.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Kellems Wire Management, Cord Connectors, Straight Male, .38-.44", 3/8", Nylon
Features
- Nylon cord connector resists most common industrial corrosives
- Provides effective pullout protection
- Lightweight design
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- SHC1012CR AutoCAD Drawing
- General Literature Asset 3 Display Text
- FOOD & BEVERAGE SOLUTIONS
- Width
- 2.500 in
- Industry Standard(s)
- UL Listed
- Application
- Straight Male- Form 1
- Conductor Range
- 0.38- 0.44 in (9.5-11.0 mm)
- NEMA Rating
- NEMA Type 4, 4X, 12 and 13
- Special Features
- Standard Product
- Temperature Rating
- Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
- General Literature Asset 1 Display Text
- Wire Management Solutions Brochure
- Nema Rating
- NEMA Type 4, 4X, 12 and 13
- Class Code
- A52
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A52A490
- Color Code
- Blue
- Material
- Nylon
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.7 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 50 EA
- Case Weight
- 15.250 lb.
- Lowest Level UOM
- Each
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
Country of OriginUnited States
Hub Size3/8"
PerformanceEnvironmental - Flammability - UL 94-V2;Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC;Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
ColorGray
Environmental ConditionsSuitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Number of ConductorsSingle
StandardUL Listed
TypeStraight Male
Display Size3/8" NPT
Number Of ConductorsSingle
Description - InvoiceCORDCON, STR ML, .38-.44", 3/8", NYL, GY
Harmonization Code3926909999
MSDS FlagNo
Material - Mounting HardwareLocknut or Tapped Opening
Cord Diameter0.38-0.44 in
SeriesStandard Duty Series
BOX SIZE4.400x6.300x5.600 (in)
Carton - Number of Sub Packs50
Carton - SCC-14 Next Lower Level Sub Pack783585207940
Case - Total Units400 EA
Each - Pack DescriptionEach
NAICS Code3359323114
Certifications
- EU RoHS Indicator
- Yes
